Klein Tools 1684-5C Chicago Grip .218 - .55 Inch for Guy Wire
KT-16845C
$581.99 Sale price: $581.99
THIS ITEM SHIPS FOR FREE!
Get It By Jan 03

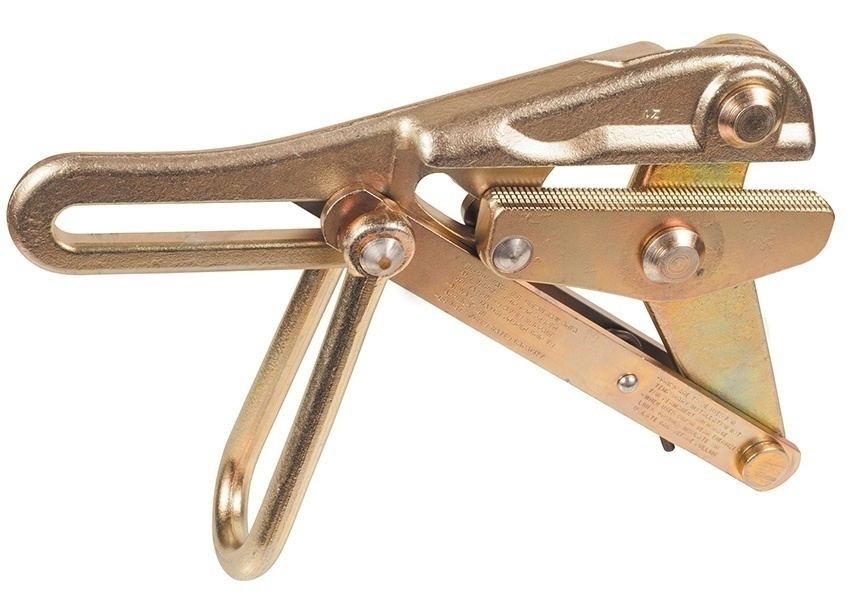

Klein Tools 1684-5C Chicago Grip .218 - .55 Inch for Guy Wire
Klein's Chicago Grip for coated guy wire works with cable that is 0.218" to 0.55". The jaw is 5" in length to offer maximum surface area contact with the cable to minimize damage. The jaw also features a sawtooth design that provides extra grip to prevent slippage.
Features:
- Sawtooth jaw profile provides extra gripping power to prevent slipping on guy strand
- 5'' jaw length increases surface area contact with the cable, minimizing cable damage
- Designed for cable sizes 0.16'' (4.06 mm) to 0.55'' (13.97 mm)
Specifications:
- Approx. Weight Each: 6.50 lbs. (2.9 kg)
- Jaw Length: 5'' (127 mm)
- Maximum Cable: .55'' (13.97 mm)
- Minimum Cable: .218"
- Maximum Safe Load: 8000 lbs. (3629 kg)
- Locking handle: yes
Other Available Grips:
| Type | Part Number | Diameter | Cable Type | Max Safe Load |
|---|---|---|---|---|
| Haven's Grip | 1604-20L | .125" - .5" | Messenger, Guy Strand | 5000 lbs |
| Haven's Grip | 1625-20 | .28" - .75" | Wire Rope | 8000 lbs |
| Chicago Grip | 1613-40 | .12" - .37" | Aircraft, EHS, Messenger, Guy Strand | 4500 lbs |
| Chicago Grip | 1628-18 | .75" - 1.0" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
| Chicago Grip | 1628-17 | .50" - .75" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
| Chicago Grip | 1628-16 | .31" - .62" | Aircraft, EHS, Messenger, Guy Strand | 15,000 lbs |
| Chicago Grip | 1684-5C | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Parallel-Jaw Grip | 1685-20 | .157" - .875" | Messenger, EHS, Coated | 4500 lbs |
| Parallel-Jaw Grip | 1685-31 | .625" - 1.25" | Messenger, EHS, Guy Strand | 7500 lbs |
| Chicago Grip | 1613-35 | #8 AWG Bare Copper - #6 AWG Bare Copper | Copper | 4500 lbs |
| Parallel-Jaw Grip with Hot Latch | KT4602 | .30" - .80" | ACSR | 10,000 lbs |
| Chicago Grip | 1684-5 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Chicago Grip | 1692-5 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Haven's Grip | 1625-20 1 | .50" - 1.0" | Wire Rope | 8000 lbs |
| Chicago Grip with Curved Jaw-Grip | 1684-74 | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Chicago Grip | 1684-5F | .16" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
| Haven's Grip | 1625-20-7/8 | .38" - .88" | Wire Rope | 8000 lbs |
| Parallel Jaw Grip with Hot Latch | KT4802 | .70" - 1.25" | ACSR | 12,000 lbs |
| Chicago Grip with Hot-Line Latch | 1684-5H | .218" - .55" | Aircraft, EHS, Messenger, Guy Strand | 8000 lbs |
KT-16845C
| Country of Manufacture: | United States |
| Manufacturer: | Klein Tools |
| Weight: | 6.70 |
