Home > Rock Exotica P51 SH Omni-Block Swivel Pulley, 1.5" Shackle Top
Model#: P51SH-B
Stock#: RX-P51SH-B
Rock Exotica P51SH-B Omni-Block Swivel Pulley, 1.5 in. Shackle Top-Black
RX-P51SH-B
$105.00 Sale price: $105.00
OUT OF STOCK

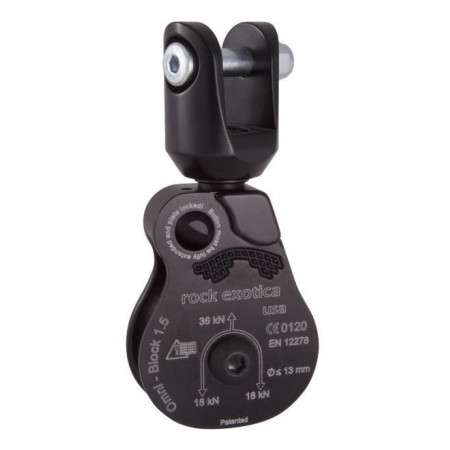

Rock Exotica P51SH-B Omni-Block Swivel Pulley, 1.5 in. Shackle Top
The Omni-Block combines a pulley with a swivel and offers tremendous advantages. It can replace a conventional pulley, carabiner & swivel and is lighter, less expensive and saves valuable vertical space. It also allows installing/removing the rope while the pulley is still anchored, which prevents dropping it & is often easier when rigging mechanical advantage systems. It does require that the user understand how it works and takes responsibility for making sure the side plates are closed & locked.
Technical Specifications
- (MBS) Minimum Breaking Strain (kN) : 36
- (MBS) Minimum Breaking Strain (lbf) : 8,093
- Certification : CE EN 12278
- Compatible with rope diameter (mm) : Max 13 mm
- Weight (grams) : 303
- Weight (ounces) : 10.7
- Sheave : 1.5"
- Working Load : (2 x 4kN) = 8 kN
- Breaking Strength : (2 x 18kN) = 36 kN
- Color : Black (P51SH-B)
Rock Exotica Omni-Block Chart
|
ROCK EXOTICA OMNI-BLOCKS |
||||||||
|
DESCRIPTION |
SHEAVE |
MATERIAL |
COLOR |
WEIGHT |
MBS |
WLL |
MAX ROPE |
CERTIFICATION |
|
1.1” (28 mm) |
Aluminum |
Standard |
5.1 oz (145 gm) |
23 kN |
5 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.1” (28 mm) |
Aluminum |
Black |
5.1 oz (145 gm) |
23 kN |
5 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Standard |
9.2 oz (260 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Black |
9.2 oz (260 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Standard |
14.5 oz (411 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
1.5” (38 mm) |
Aluminum |
Black |
14.5 oz (411 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Standard |
12.3 oz (348 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Black |
12.3 oz (348 gm) |
36 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Standard |
19.4 oz (548 gm) |
40 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.0” (51 mm) |
Aluminum |
Black |
19.4 oz (548 gm) |
40 kN |
8 kN |
0.5” (13 mm) |
CE / UIAA |
|
|
2.6” (66 mm) |
Aluminum |
Standard |
1.9 lbs (850 gm) |
80 kN |
20 kN |
0.5” (13 mm) |
CE / UIAA |
|
RX-P51SH-B
| Attachment: | Shackle |
| Color: | Black |
| Width: | 1.8" |
| Country of Manufacture: | United States |
| Height (Generic): | 5.3" |
| Industry: |
Construction General Industry Rigging Rope Access Rope Access & Rescue Solar Tower Climbing Tree Care Utility Wind Energy |
| Length: | 2.5" |
| Manufacturer: | Rock Exotica |
| Material: | Aluminum |
| Minimum Breaking Strength (MBS): | 36 kN |
| Rope Compatibility (Min/Max): | 1/2" (13mm) |
| Standards: |
CE UIAA |
| Type: | Single |
| Working Load Limit (WLL): | 8 kN |
| Weight: | 1.87 |
