FallTech Dual Truss Roof Anchor Kit

FallTech Dual Truss Roof Anchor Kit

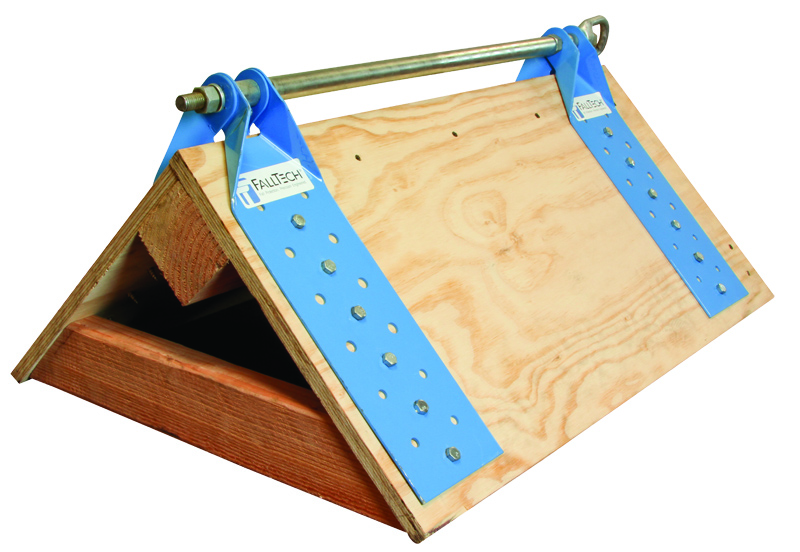

The FallTech 7432 Dual Truss Roof Anchor is a rugged steel construction, designed to mount to two adjacent trusses for superior anchor-point strength.

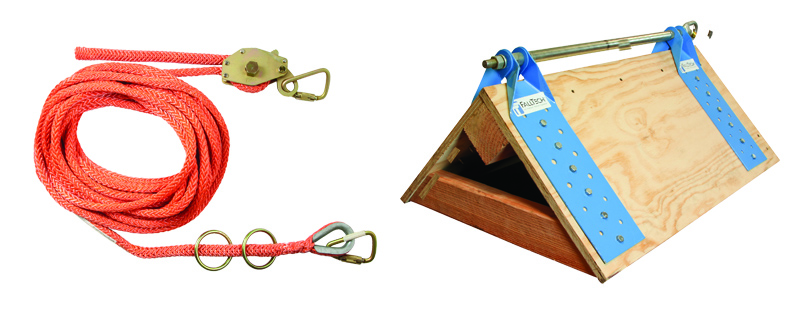

Anchor Kit:

• 2-person Temporary Horizontal Roof Truss System
• Includes 2 Dual Truss Roof Anchors; 50' length Synthetic Rope
• Line Tensioner
• 2 O-rings
• 2 Carabiners
• Storage Bag
• High-strength, 12-strand braided rope HLL with alloy steel tensioning device
• Requires no special tools and can be installed and removed in minutes
• Requires use of shock absorbing lanyard or self-retracting device for fall arrest

Anchor Features:

• Rugged steel construction, designed to mount to two adjacent trusses for superior anchor-point strength.
• For use as part of a system including two dual-truss anchors along with a FallTech 4-man temporary HLL system or with a FallTech PSR temporary HLL system for up to two users.
• Fasteners Included
• Meets the requirements of OSHA 1926 and ANSI Z359.

Material Specifications:

• Anchor Legs: Carbon steel, SAE 1008
• Cross-bar: Galvanized stell, grade 5
• Eye-bolt: Galvanized steel, grade 5

Performance Specifications:

• Tensile Strength: 6,500 lbs.
• Max. Capacity: 425 lbs.

Relevant Standards:

• OSHA: CFR1926.502, CFR1910.66
• ANSI: A10.32-2004, Z359.1-2007
