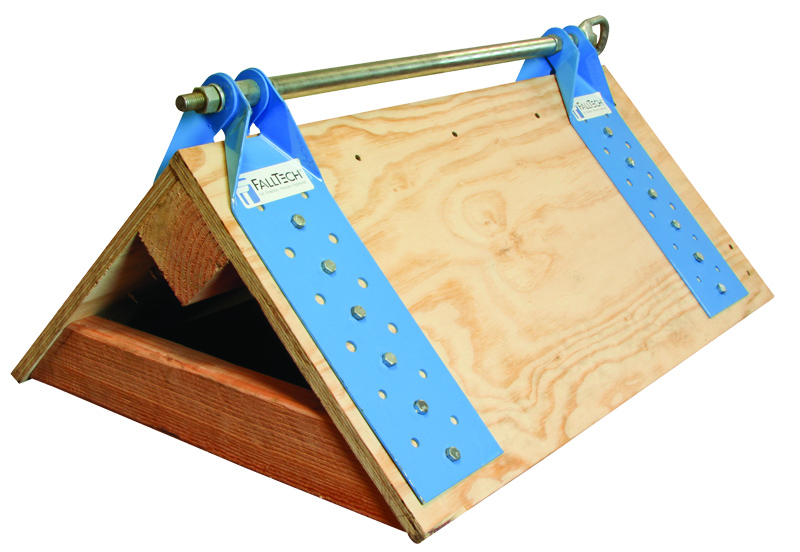

FallTech Dual Truss Roof Anchor

FallTech Dual Truss Roof Anchor

The FallTech 7432 Dual Truss Roof Anchor is a rugged steel construction, designed to mount to two adjacent trusses for superior anchor-point strength.

The dual truss-mount anchor for horizontal lifeline use

• Attaches to Sheathing or Trusses
• Includes Lag Screws/U-bolts
• Mounting Plates are 5" x 12" Each
• 24" on Center for Roof Trusses.

Features:

• Rugged steel construction, designed to mount to two adjacent trusses for superior anchor-point strength.
• For use as part of a system including two dual-truss anchors along with a FallTech 4-man temporary HLL system or with a FallTech PSR temporary HLL system for up to two users.
• Fasteners Included
• Meets the requirements of OSHA 1926 and ANSI Z359.

Material Specifications:

• Anchor Legs: Carbon steel, SAE 1008
• Cross-bar: Galvanized stell, grade 5
• Eye-bolt: Galvanized steel, grade 5

Performance Specifications:

• Tensile Strength: 6,500 lbs.
• Max. Capacity: 425 lbs.

Relevant Standards:

• OSHA: CFR1926.502, CFR1910.66
• ANSI: A10.32-2004, Z359.1-2007
