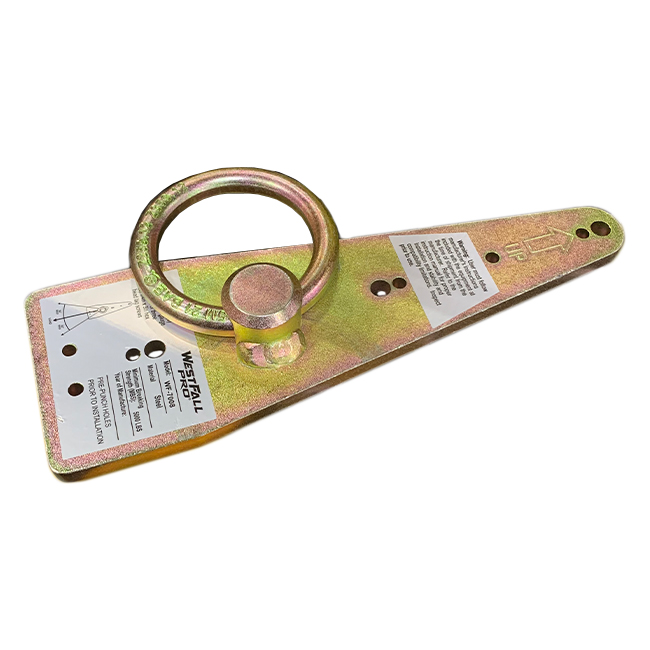

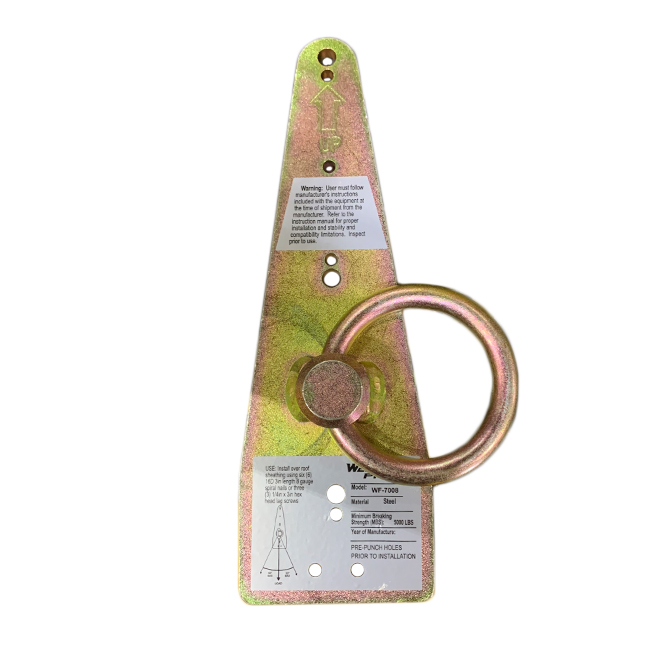

WestFall Pro Bull Ring Anchor

WestFall Pro Bull Ring Anchor

The WestFall Pro Bull Ring Anchor is for personal fall arrest, restraint, or work positioning applications. The Substrate that the anchor is attached to must be a roof truss or a support beam that is a minimum of 3" thick CDX or better. All fasteners (use either six 16d, 3" long 8 gauge nails or three 1/4" x 3" zinc-plated steel hex head lag screws) must be fully embedded in the substrate. This anchor has a worker weight capacity range of 130-420 lbs.

Features:

• Easy to install
• Reusable
• Lightweight and durable
• Compatible with horizontal lifelines

Specifications:

• Applicable Standards: OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.1-07, and ANSI A10.32-12
• Worker Capacity Range: 130-420 lbs
• Material: Heat Treated Steel
• Min. Breaking Strength: 5,000 lbs
