Tractel Griphoist/Tirfor Wire Rope Hoists

Tractel Griphoist/Tirfor Wire Rope Hoists

Features:

• Portable
• Low-wear jaws
• Easy installation

Specifications:

• Load Capacity from 800-3200 kg
• Complies with:
  • EN 13157
• Overload protection

Options:

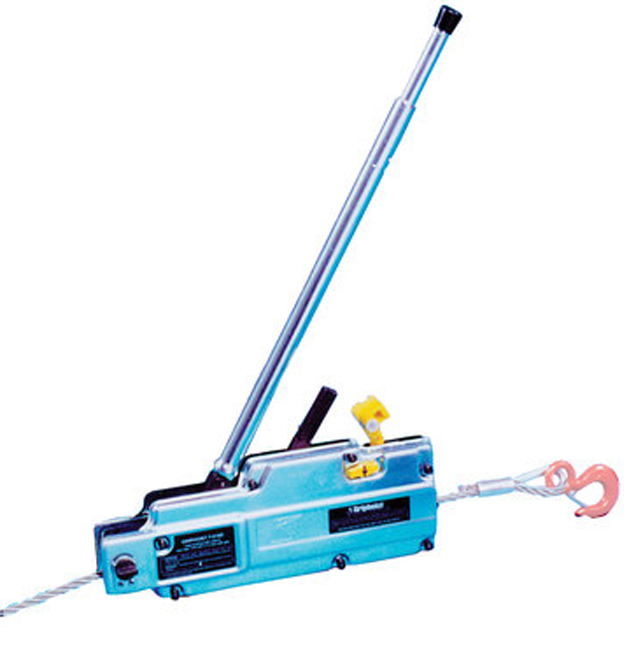

• T516D
  • Nominal Capacity: 4,000 lbs.
  • Wire Rope Dia.: 7⁄16 in.
  • Wire Rope Weight: 28.9 lbs./60 ft.
  • Unit Weight: 30 lbs

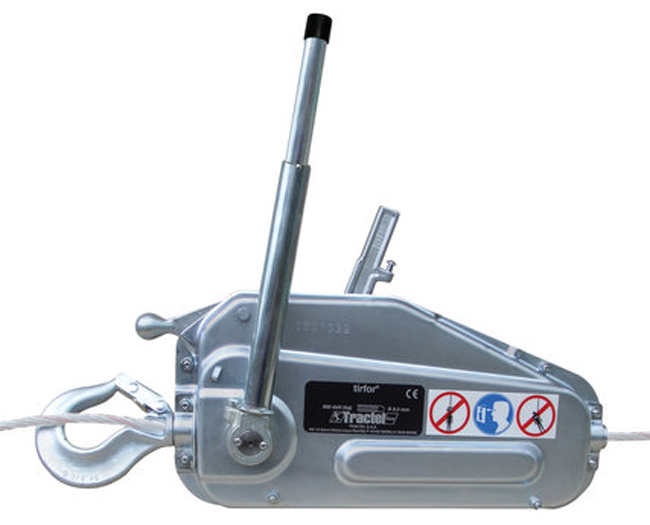

• TU17
  • Without wire rope
  • Weight: 18.7 pounds
  • Working Load Limit
    • 2,000 pounds

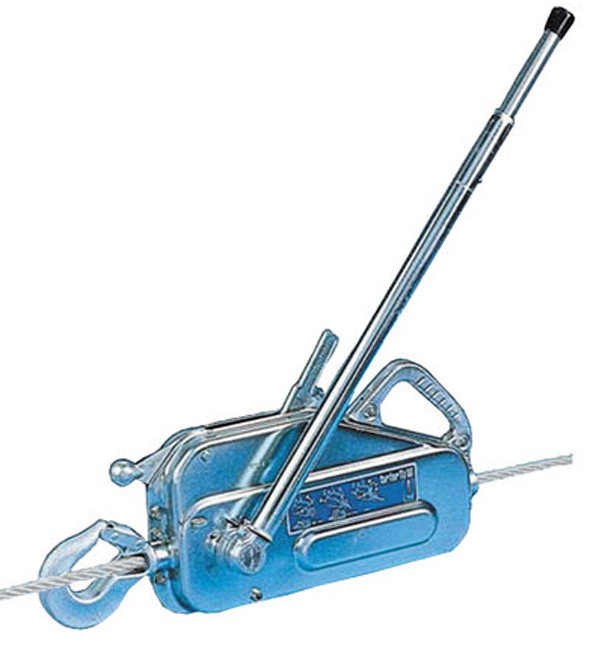

• TU28
  • Without wire rope
  • Weight: 41 pounds
  • Working Load Limit
    • 4,000 pounds

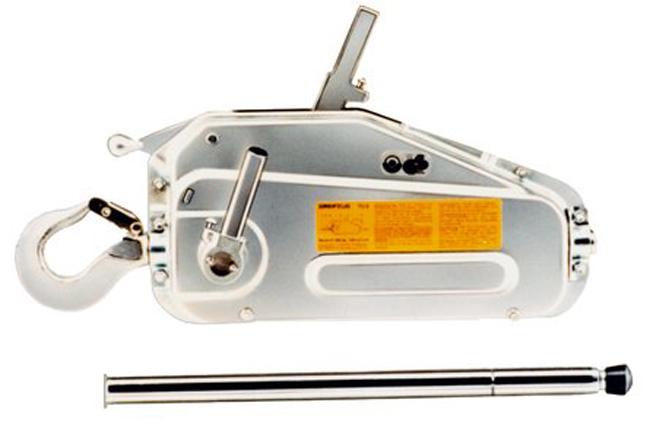

• TU32
  • Without wire rope
  • Weight: 64 pounds
  • Working Load Limit:
    • 8,000 pounds

The Tractel Tirfor TU series is developed for daily heavy-duty applications under the most extreme circumstances. The Tractel Tirfor TU hoist is a versatile and portable multi-purpose manual hoist for lifting, pulling and positioning devices.

It can be used for lifting and pulling, but also for lowering, tensioning and securing loads in all directions.

One-person operation by using the telescopic control lever supplied as standard. Spare shear pins for overload protection are supplied as standard.
