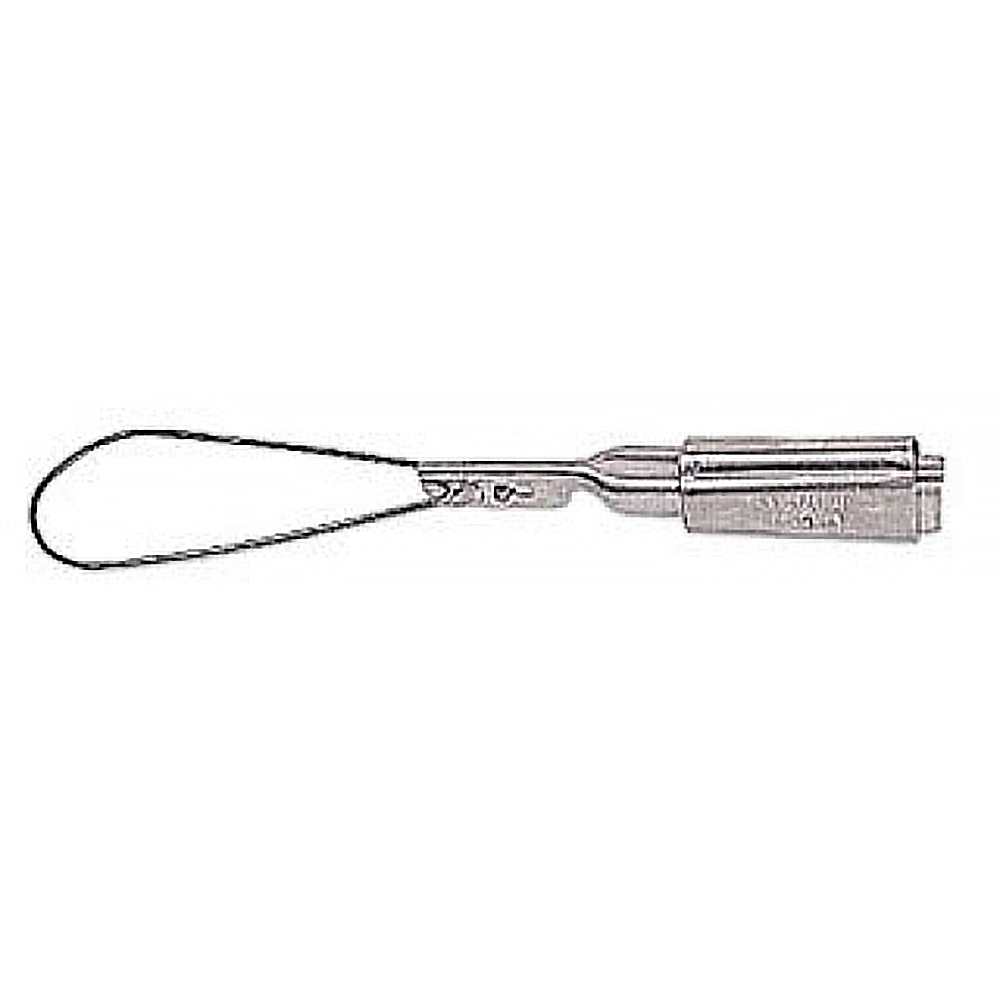

Blackburn W62-1 Wedge Clamp

Specifications:

• UPC: 78378633200
• Catalog Number: W62-1
• Model: W
• Material: Aluminum
• Length: 12-1/2 Inch
• Width: 2-3/8 Inch
• Additional Information:
  • Voltage Rating 35 Kilovolt; Conductor Size 6 to 2 AWG (ACSR/AAAC), 6 AWG Solid to 1 AWG Stranded (Aluminum); Tensile Strength 1200 Pound; Application Dead-End Self-Supporting Drop Wire
• CATALOG DESCRIPTION:
  • ALUMINUM SERVICE ENTRANCE WEDGE CLAMP AND SLIDER FOR WIRE RANGE: 2-6 ACSR, 2-6 AAAC, 1 STR.-6 SOL. , COLOR CODE ORANGE
• Category: Large Terminals & Connectors
• Full Technical Description:
  • Aluminum Material; 12-1/2 Inch; 2-3/8 Inch; Voltage Rating 35 Kilovolt; Conductor Size 6 to 2 AWG (Acsr/Aaac), 6 AWG Solid to 1 AWG Stranded (Aluminum); Tensile Strength 1200 Pound; Application Dead-End Self-Supporting Drop Wire; W Model
• Product Description: Blackburn W62-1 2 Alum Wedge Clamp
• Sub-Category:  Cable Clamp
• UNSPSC:  39121431
• UPC 12 Digit: 783786332007
• Unique Product Key: 33941
