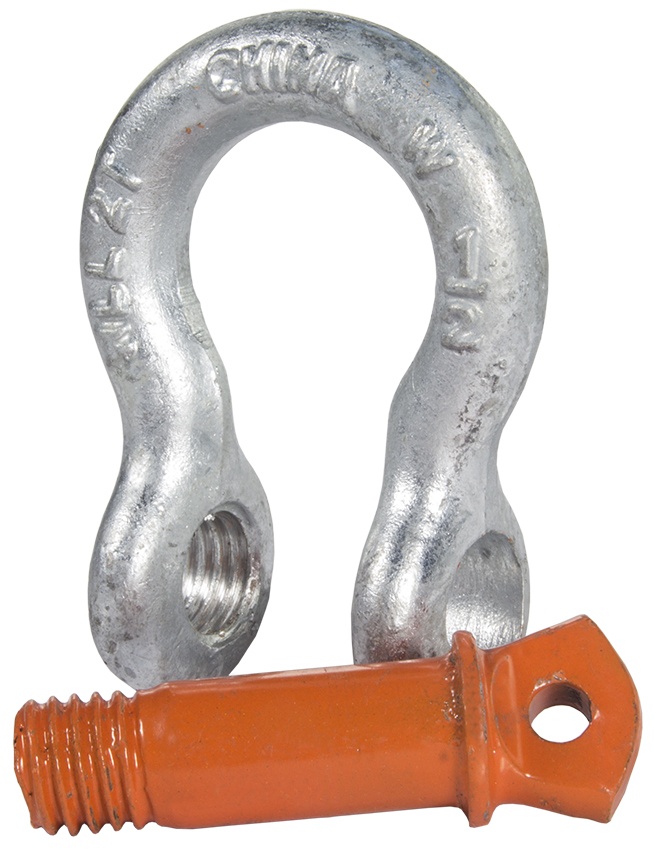

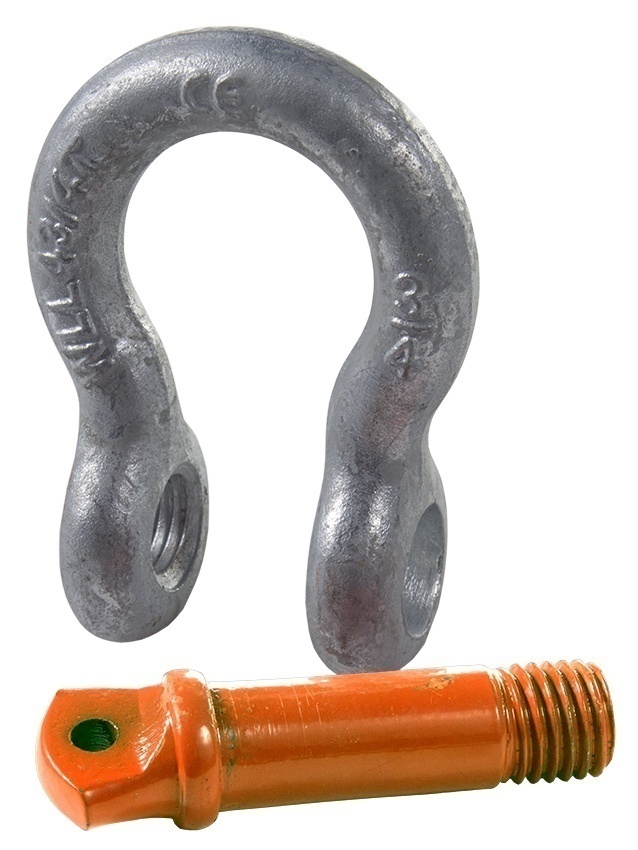

Weisner Screw Pin Type Anchor Shackles

Weisner Screw Pin Type Anchor Shackles has the following features:

• Forged Carbon Steel with Alloy Pins
• Hot Dip Galvanized
• Meets the requirements of the Federal Specification RR-C-271D, Type IV A, Grade A, Class 2
• Country of Origin: China

WS-SHA38LR Specifications:

• Size in Inches - 3/8"
• Working Load Limit in Tons (Vertical) - 1
• Pin Diam. in Inches - 7/16
• Approx. Wt. Each in Pounds - 0.30

WS-SHA12LR Specifications:

• Size in Inches - 1/2"
• Working Load Limit in Tons (Vertical) - 2
• Pin Diam. in Inches - 5/8"
• Approx. Wt. Each in Pounds - 0.70

WS-SHA58LR Specifications:

• Size in Inches - 5/8"
• Working Load Limit in Tons (Vertical) - 3 1/4
• Pin Diam. in Inches - 3/4"
• Approx. Wt. Each in Pounds - 1.37

WS-SHA34LR Specifications:

• Size in Inches - 3/4"
• Working Load Limit in Tons (Vertical) - 4 3/4
• Pin Diam. in Inches - 7/8"
• Approx. Wt. Each in Pounds - 2.35

SHA78LR Specifications:

• Size in Inches - 7/8"
• Working Load Limit in Tons (Vertical) - 6-1/2
• Pin Diam. in Inches - 1
• Approx Wt. Each in Pounds - 3.62

WS-SHA1LR Specifications:

• Size in Inches - 1"
• Working Load Limit in Tons (Vertical) - 8-1/2
• Pin Diam. in Inches - 1-1/8
• Approx Wt. Each in Pounds - 5.03

WS-SHA118LR Specifications:

• Size in Inches - 1-1/8"
• Working Load Limit in Tons (Vertical) - 9-1/2
• Pin Diam. in Inches - 1-1/4
• Approx Wt. Each in Pounds - 7.41

WS-SHA114LR Specifications:

• Size in Inches - 1-1/4"
• Working Load Limit in Tons (Vertical) - 12
• Pin Diam. in Inches - 1-3/8
• Approx Wt. Each in Pounds - 9.5

WS-SHA138LR Specifications:

• Size in Inches - 1-3/8"
• Working Load Limit in Tons (Vertical) - 13-1/2
• Pin Diam. in Inches - 1-1/2
• Approx Wt. Each in Pounds - 13.53
