Home > Manufacturers > Portable Winch Company > Portable Winch Gas-Powered High-Speed Pulling Winch

Model#: PCW5000-HS

Stock#: 708-PCW5000-HS

UPC/GTIN/EIN: 690581001802

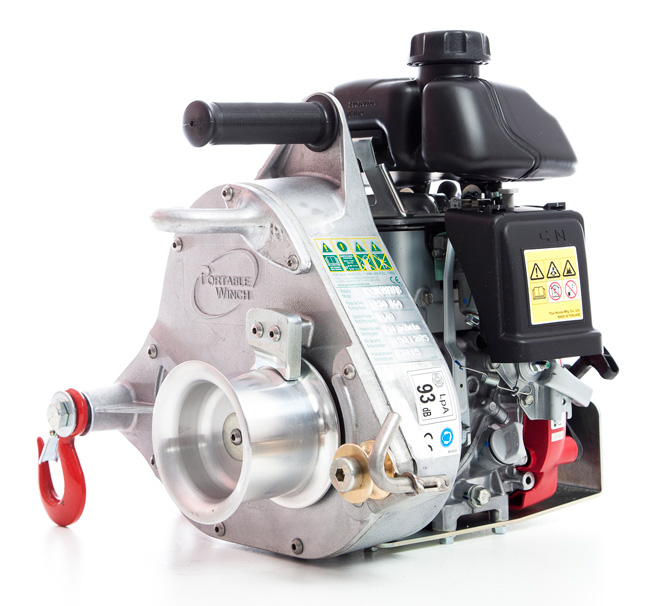

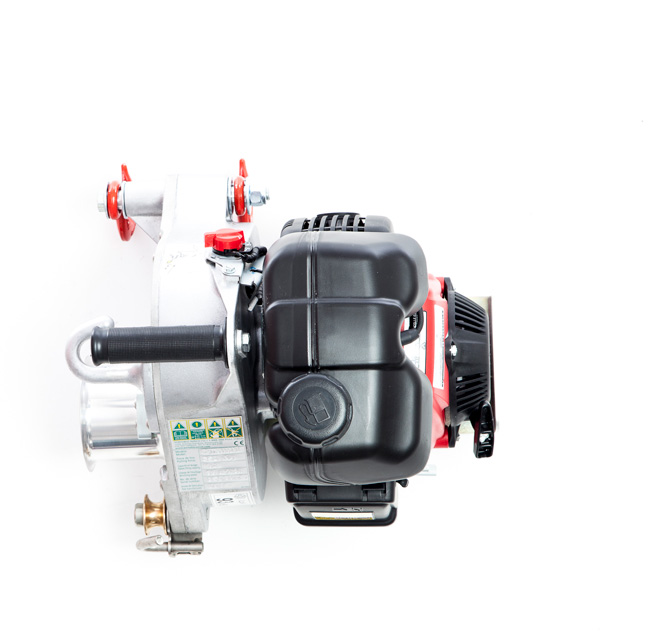

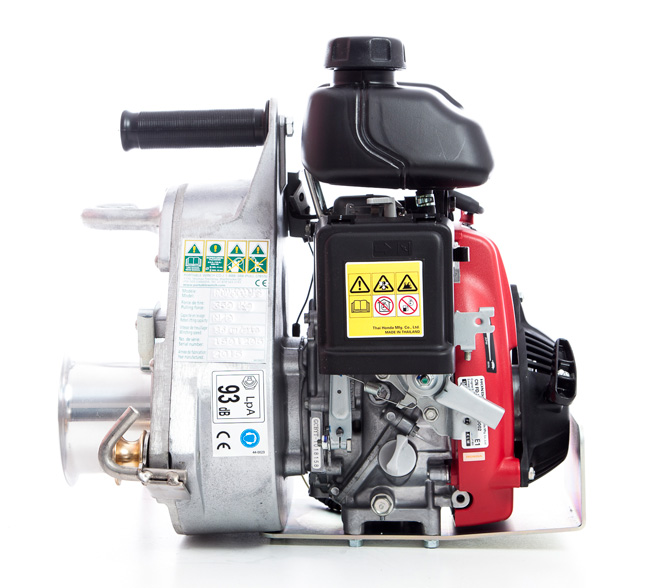

Portable Winch Gas-Powered High-Speed Pulling Winch

708-PCW5000-HS

$1,998.99 Sale price: $1,998.99

THIS ITEM SHIPS FOR FREE!
This product's manufacturer is Portable Winch

ON BACKORDER

Call for availability

Portable Winch Gas-Powered High-Speed Pulling Winch

Features:

  • Honda 4-Stroke GXH-50cc
    • Aluminum Alloy Gear Box
    • Heat-treated 3 Stage Spur Gears
    • Ball-bearing Mounts
    • Oil Bath Lubrication
  • Lightweight
  • For use with double-braid polyester rope
    • 10mm to 16mm
  • Polyester Sling Included
    • 60 mm x 2 m

Specifications:

Drum Size Capacity (pounds) Speed (Feet per minute)
Comes With: 85mm 770  118
Optional: 57mm 1100  79
  • Dimensions (inches):
    • Weight: 35.3 pounds
    • Length: 14-¼
    • Width: 14-5/8
    • Height: 14-¼

The Portable Winch Gas-Powered High-Speed Pulling Winch is ideal for a variety of uses powered by a Honda GXH-50cc four-stroke engine. With a gearing ratio of 53:1, this winch will make quick work of your projects while still providing the pulling strength needed for the tough jobs. Capable of pulling up to 770 pounds at 118 feet per minute with the standard 85-millimeter drum. It can be used with any length of double-braid polyester rope between 10mm to 16mm. The ideal rope for this winch is 12mm/½inch.

Click here for more options for drum size.

Receive an additional year of warranty by registering your product below:

708-PCW5000-HS

Capacity: Double-Line Optional (57 mm) Drum | 2200 lbs
Double-Line Standard (85 mm) Drum | 1540 lbs
Single-Line Optional (57 mm) Drum | 1100 lbs
Single-Line Standard (85 mm) Drum | 770 lbs
Width: 14-5/8"
Height (Generic): 14-1/4"
Industry: Construction
General Industry
Mining
Rope Access & Rescue
Solar
Tower Climbing
Tree Care
Utility
Wind Energy
Length: 14 - 1/4"
Manufacturer: Portable Winch
Material: Aluminum Alloy
Mechanical Advantage: 53:01
Rope Compatibility (Min/Max): 3/8" - 1/2"
Search Weight: 1
Speed: 57 mm Drum | 79' per minute
85 mm Drum | 118' per minute
Standards: CE
Type: Gas Power
Warranty?: Yes
Weight: 35.30
