Model#: C-RG1200
Stock#: C-RG1200
MIO Mechanical Rope Grab
Multiple Options Available
$216.99 to $244.99 Sale price: $216.99 to $244.99
THIS ITEM SHIPS FOR FREE!
Please select an option below

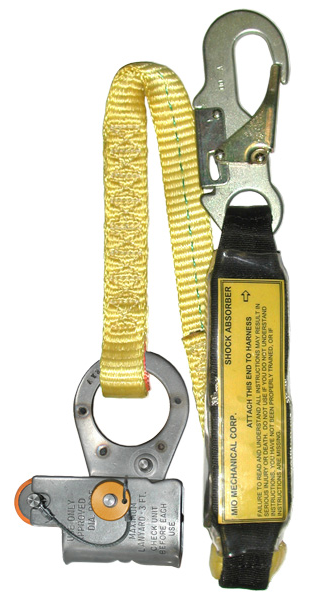

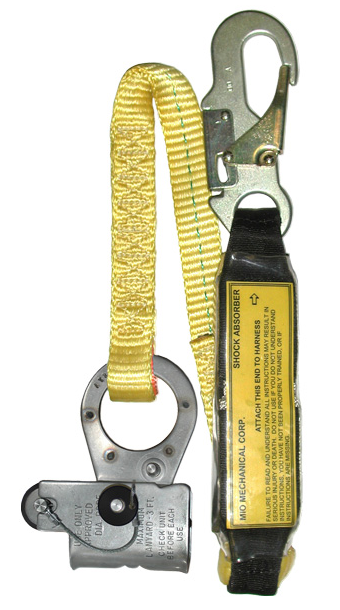

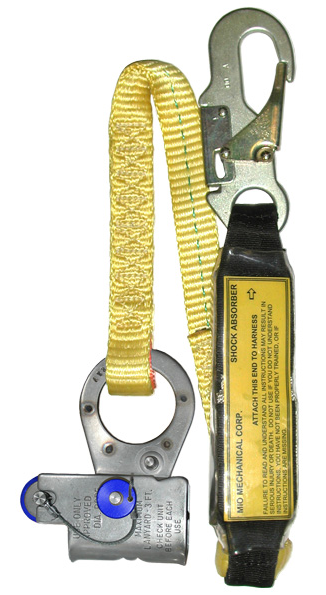

MIO Mechanical Rope Grab
This highly effective self-trailing MIO rope grab grips automatically in the event of a fall and dissipates the energy of the fall by slipping along the kernmantle rope. When used within OSHA guidelines on approved ropes, the amount of slip is well within the OSHA requirements. This rope grab comes with a lanyard and an ANSI Snap Hook. Models available for 7/16"(11 mm), 1/2"(12.5 mm), and 5/8"(16 mm) ropes.
MIO Key Features:
- Meets ANSI requirements
- Used for fall arrest
- Approved and tested with PMI® Classic Static
- Removable dual-action pin for easy placement on the rope
- Stainless steel
- Self-trailing
- RG-1200-3LS, RG-5800-3LS, RG-716-3LS
Specifications:
- Length: 3 Feet
- Maximum Elongation: 42 inches
- Maximum Arresting Force: <900 lbs
- Maximum Free Fall: 6 Feet
- Maximum Capacity: 310 lbs
|
Sizing Information |
1/2" Rope |
5/8" Rope |
7/16" Rope |
|
Weight |
1 lbs 6.0 oz (612 g) |
1 lbs 6.0 oz (612 g) |
1 lbs 6.0 oz (612 g) |
|
Length |
4.25" (10.8 cm) |
4.25" (10.8 cm) |
4.25" (10.8 cm) |
|
Width |
5.25" (13.3 cm) |
5.25" (13.3 cm) |
5.25" (13.3 cm) |
|
Height |
2.75" (7.0 cm) |
2.75" (7.0 cm) |
2.75" (7.0 cm) |
|
Pin Color |
Blue |
Black |
Yellow |
Available Options:
- 11 mm rope grab: HD26114
- 12.5 mm rope grab: HD26005
- 16 mm rope grab: HD26006
C-RG1200
| Country of Manufacture: | United States |
| Manufacturer: | MIO Mechanical |
