Home > Izzy Lugs 1 Hole Copper Compression Lug (50 pack)
Model#: C-IL-I1410-1
Stock#: C-IL-I1410-1
Izzy Lugs 1 Hole Copper Compression Lug (50 Pack)
Multiple Options Available
$54.99 to $110.99 Sale price: $54.99 to $110.99 PK (50)
FREE SHIPPING OVER $75!
Please select an option below
Izzy Lugs 1 Hole Copper Compression Lug (50 pack)
Izzy 1 Hole Long Barrel Copper Compression Lug (50 pack)
Specifications:
- Color-Coded
- Wire Type: Stranded Copper
- 1 Hole
- UL listed for Applications up to 35kv
- 90° C UL temperature rating
- CSA Certified
- Available with and without inspection window
Color Codes:
- #2 Stranded: Brown
- #6 Stranded: Blue
- #8 Stranded: Red
- #2 Solid / #4 Stranded: Grey
- #14-10 Stranded: Yellow
| PART # | WIRE GAUGE | HOLE SIZE | WIRE STRIP LENGTH | INSPECTION WINDOW | COLOR |
|---|---|---|---|---|---|

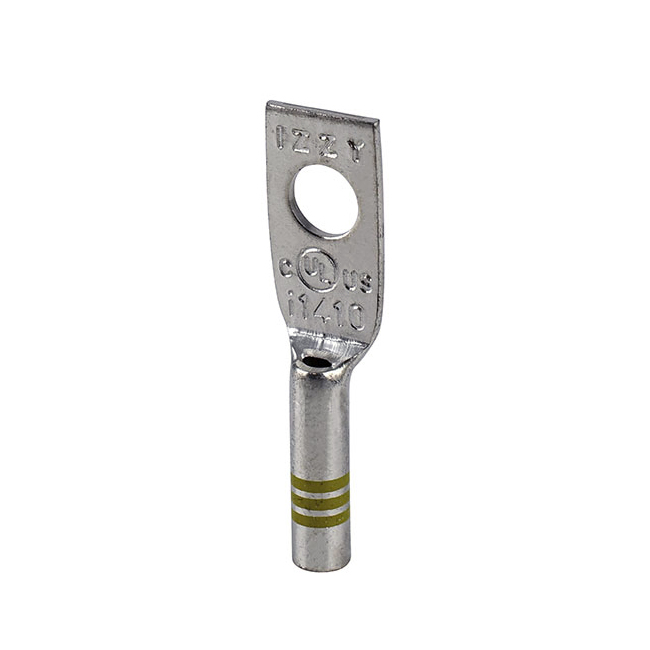

| IL-i1410 | #14-10 Stranded | 1/4" | 3/4" | Yes | Yellow |

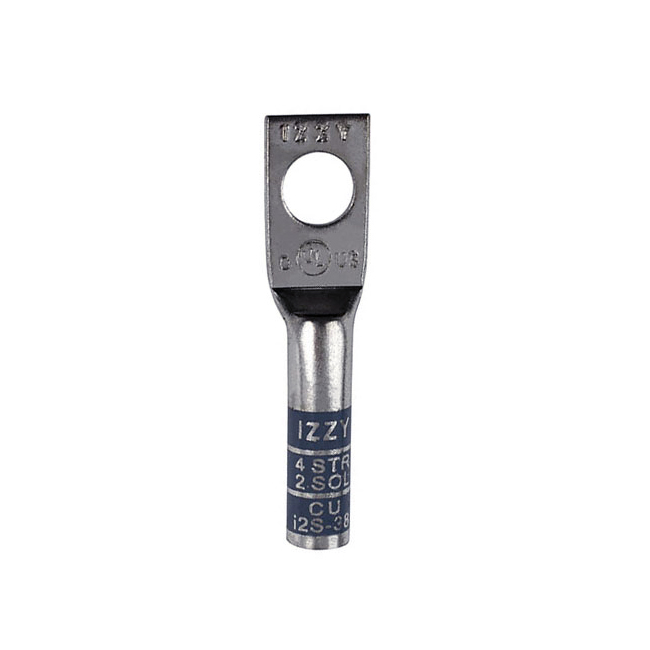

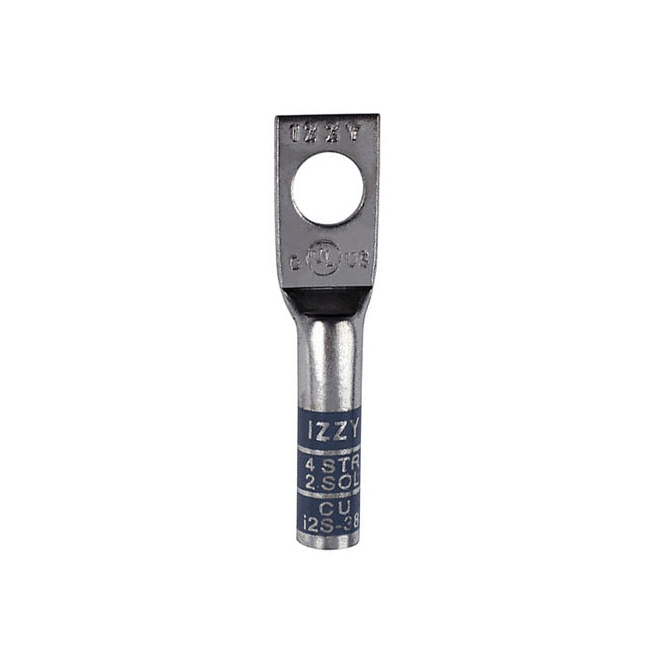

| IL-i2S-38 | #2 Solid and #4 Stranded | 3/8" | 1-1/8" | Yes | Gray |
| IL-2S-38 | #2 Solid and #4 Stranded | 3/8" | 1-1/8" | No | Gray |
| IL-i2-14 | #2 Stranded | 1/4" | 1-1/4" | Yes | Brown |
| IL-i2-38 | #2 Stranded | 3/8" | 1-1/4" | Yes | Brown |
| IL-2-14 | #2 Stranded | 1/4" | 1-1/4" | No | Brown |
| IL-2-38 | #2 Stranded | 3/8" | 1-1/4" | No | Brown |
| IL-2-516 | #2 Stranded | 5/16" | 1-1/4" | No | Brown |
| IL-i6-38 | #6 Stranded | 3/8" | 1-1/8" | Yes | Blue |
| IL-i6-14 | #6 Stranded | 1/4" | 1-1/8" | Yes | Blue |
| IL-6-516 | #6 Stranded | 5/16" | 1-1/8" | No | Blue |
| IL-6-38 | #6 Stranded | 3/8" | 1-1/8" | No | Blue |
| IL-6-14 | #6 Stranded | 1/4" | 1-1/8" | No | Blue |

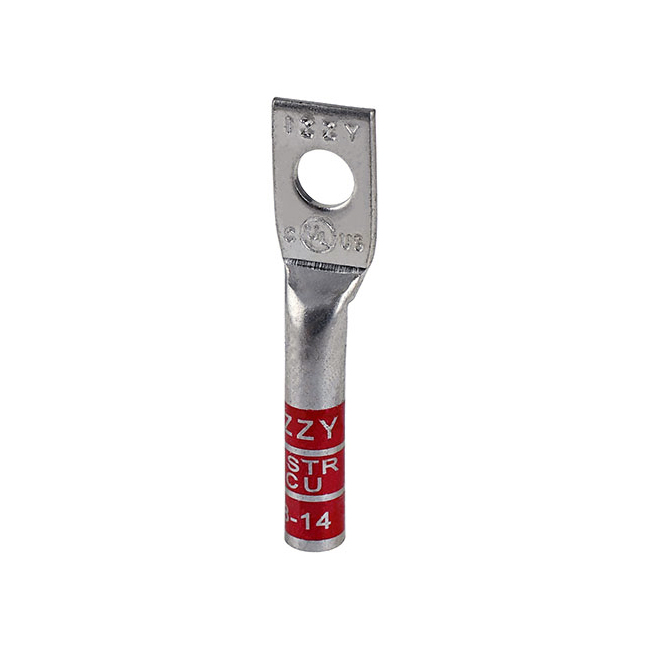

| IL-8-14 | #8 Stranded | 1/4" | 1" | No | Red |

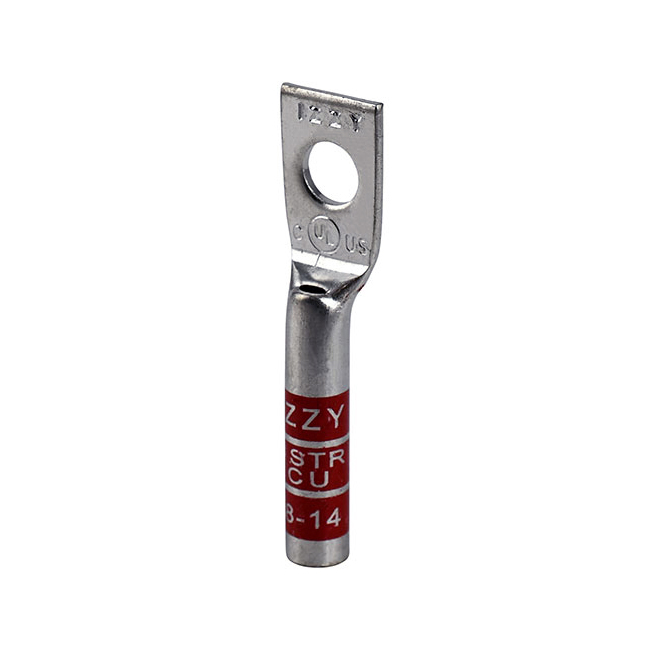

| IL-i8-14 | #8 Stranded | 1/4" | 1" | Yes | Red |
C-IL-I1410-1
| Manufacturer: | Izzy Lugs |
