Home > Hougen HMD130 Low Profile Mag Drill

Model#: HMD130

Stock#: HO-0130101

UPC/GTIN/EIN: 662850023747

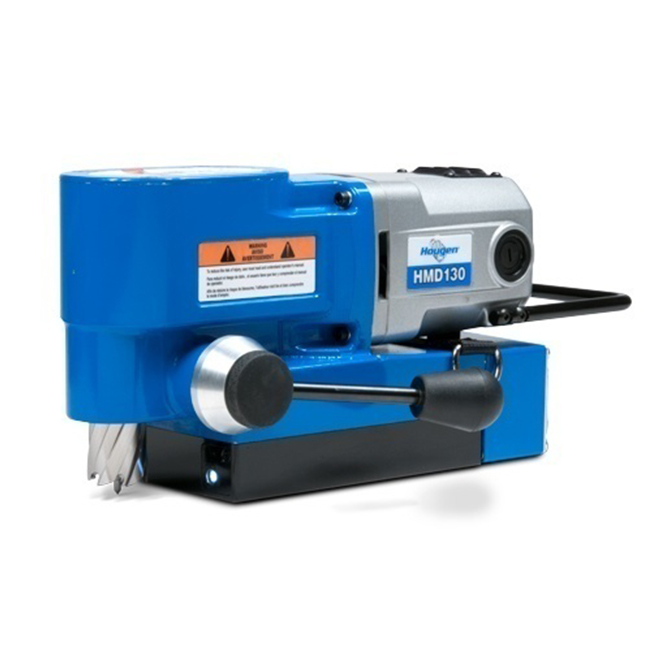

Hougen HMD130 Ultra Low Profile Mag Drill

HO-0130101

$1,237.00 Sale price: $1,237.00

THIS ITEM SHIPS FOR FREE!
Get It By Jan 03

Hougen HMD130 Ultra Low Profile Mag Drill

Hougen's HMD130 Low Profile Mag Drill is a super lightweight, right angle drill that offers a large capacity. This 115 Volt Mag Drill is extra powerful with its high torque gearing and positive slug ejection. The quill feed arbor allows for smooth cuts with minimal maintenance.

Features:

  • Lightweight at only 23.8 lbs (10.8kg)
  • Patented quill feed arbor for smooth cuts and minimal maintenance
  • Uses RotaLoc Plus™ annular cutters which requires no tools for installation or removal
  • Positive slug ejection
  • High torque gearing
  • Lift detector safety system
  • Feed handle switches easily from side to side
  • Ratchet can be used in place of feed handle
  • Rear mounted controls
  • Carrying handle
  • Carrying Case included
  • One year warranty
  • 115 V
  • This drill replaces the HMD115 and HMD150
Specifications:

Electrical System

120V, 50/60 Hz - 9A, 1035W
230V, 50/60 Hz - 4.5A, 1035W


Motor

8A (120V), 4A (230V) 450 RPM


Diameter

7/16"- 1-3/8" (12mm - 35mm)


Depth

1" (25mm)


Cutter/Mount

RotaLoc™& RotaLoc Plus™
with push & turn style shank


Dimensions

7-13/16" H x 6-1/2" W x 11-11/16" L
(198mm H x 165mm W x 297mm L)


Magnet

Base

4" W x 7" L (102mm W x 178mm L)

1" Plate(25mm)

Dead Lift
2165 lb. (982 kg)

Drillpoint Breakaway
735 lb. (333 kg)

3/8" Plate(9.5mm)

1200 lb. (544 kg)

500 lb. (227 kg)


Weight

22.7 lb. (10.3 kg) • Shipping 32 lb (14.5 kg)



HO-0130101

Width: 6-3/4"
Diameter: 7/16" - 1-3/8" (12 mm - 35 mm)
Drill Depth: 1" (25 mm)
Height (Generic): 6-11/16"
Length: 14-11/16"
Manufacturer: Hougen
Tool Style: Bare Tools (No Battery)
Voltage: 115V AC
Weight: 32.30
