Harken Wingman Haul Kit

Harken Wingman Haul Kit

The Harken Wingman Haul Kit applies new design and technology to achieve more from a compact personal mechanical advantage system. Wingman’s innovative design makes it among the first offerings in this category to achieve internal progress capture mechanically within the unit rather than relying on prusiks to achieve that externally. Wingman combines a ratcheting sheave to stop the rope with a composite handle or wing the operator can open and close under load for a well-modulated ‘fine-tuned’ release. Under full load even with the sheaves pulled completely together, the system may be released quite easily--with full control using one hand on the wing and the other tending the line. The Wingman has a minimum overall length of just 8” which means more clearance under a tripod and more throw during a pick-off. The device is also ideal for creating adjustable directionals, work positioning, and much more. It may be configured as a 4:1 or 5:1 mechanical advantage system. These revolutionary features plus ball bearings within the sheaves that maximize efficiency for raising and lowering loads of up to 681lbs, makes Wingman a simple tool you will always want at your side.

Features:

• High-efficiency ball-bearing pulleys, internal ratchet, and sheaves are engineered to maximize rope holding.
• Can be released smoothly under full load with one hand
• 4:1 or 5:1 mechanical advantage (flip orientation to rig either way)
• Eccentric progress capture = no prusiks
• Machined aluminum swivel connection points
• Breaking load (kN): 45 kN
• Maximum working load (lb): 647 lb
• Maximum working load (kg): 300 kg
• Breaking load (lb): 10116 lb
• Dimensions (IN404) =14x12x3
• Dimensions (IN404.WO) =14x9x2

Available Options:

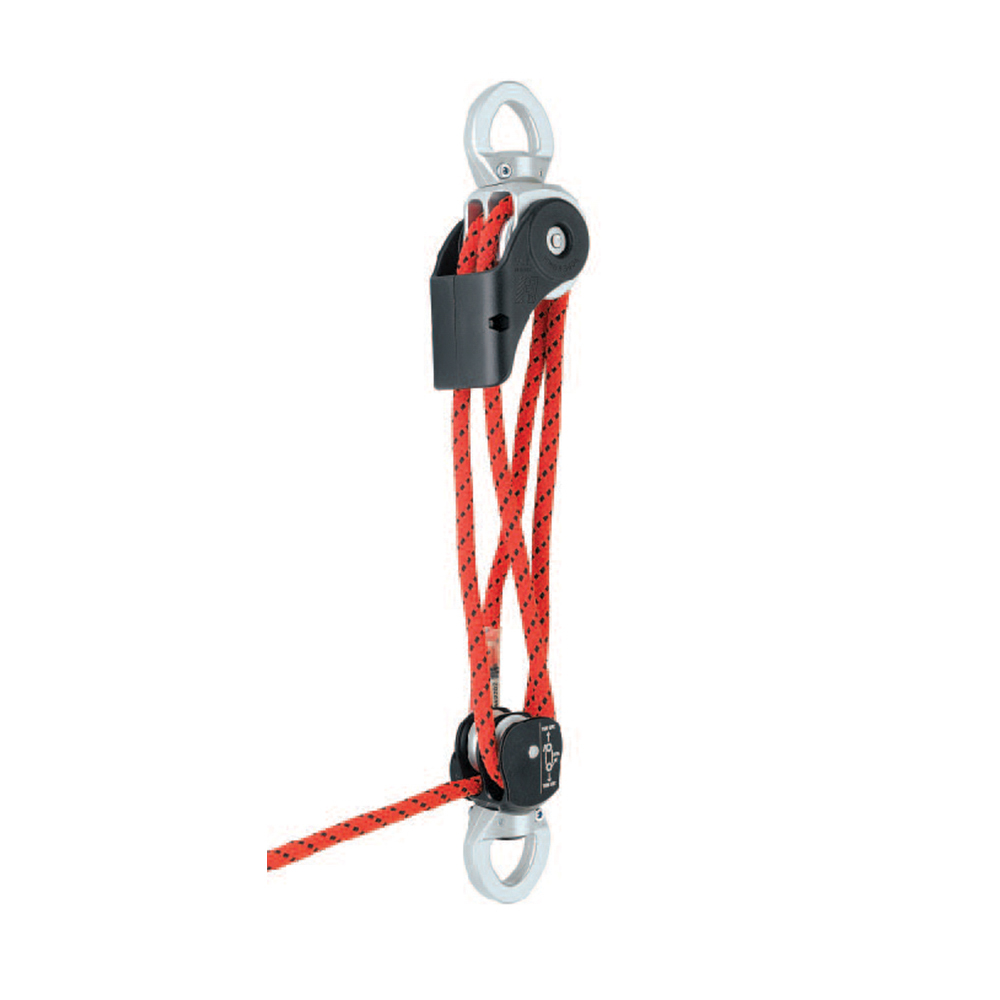

• 50 Foot Haul Kit (IN404.WO)

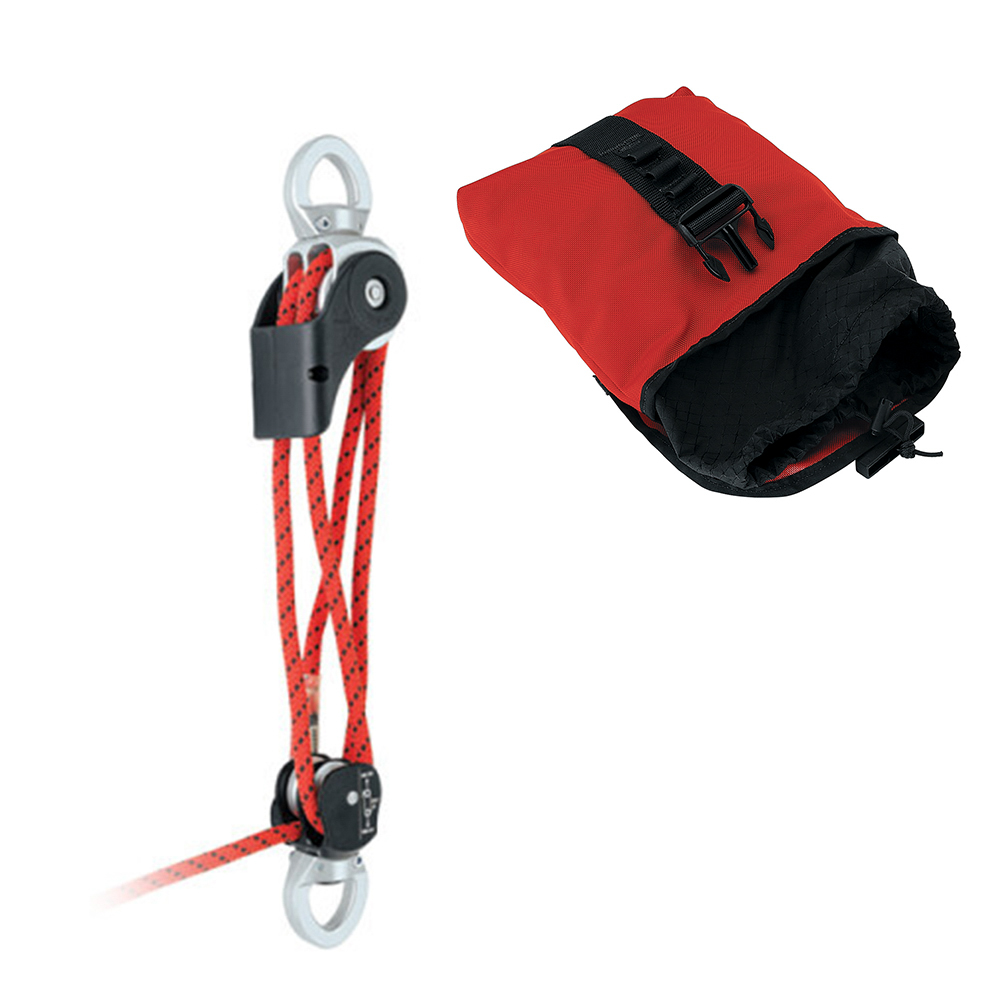

• 50 Foot Haul Kit with Nylon Case (IN404)
  • The case is industrial-grade ballistic nylon with a locking buckle. The case includes a drawstring and drains grommets to separate the unit and line for proper deployment and line drying.
• 150 Foot Haul Kit
• 250 Foot Haul Kit
