Harken Industrial SBL Snatch Pulley

Harken Industrial SBL Snatch Pulley

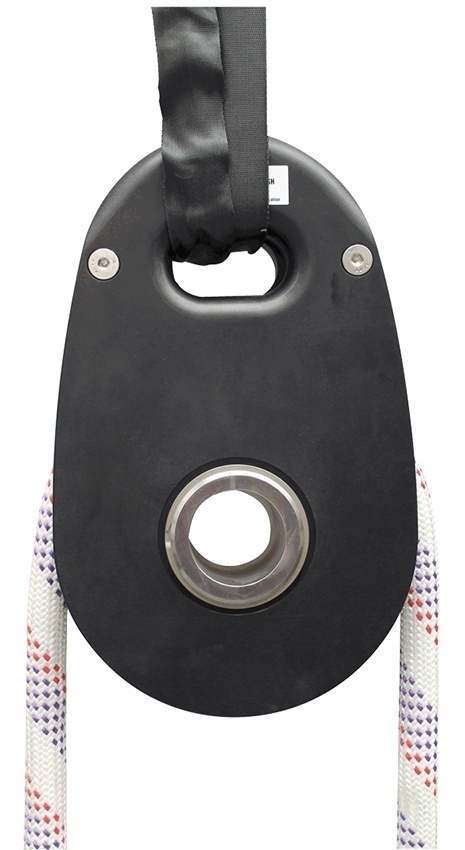

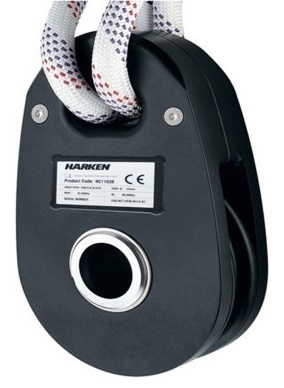

The Harken Industrial SBL Snatch Pulley has 24,000, 30,000, and 50,000 lb options. The SBL (strong but light) Snatch pulleys maximize the benefits of fiber rope within a safer, more ergonomic working environment. Weighing less than 25% of comparable pulleys, they make light work of rigging and deployment. The  hardcoat-anodized sheaves run on high-efficiency composite bearings, reducing rope wear. Maintenance is easy because the simple construction requires no lubrication. Simply flush with fresh water to keep your SBL Snatch pulley free rolling.

Features:

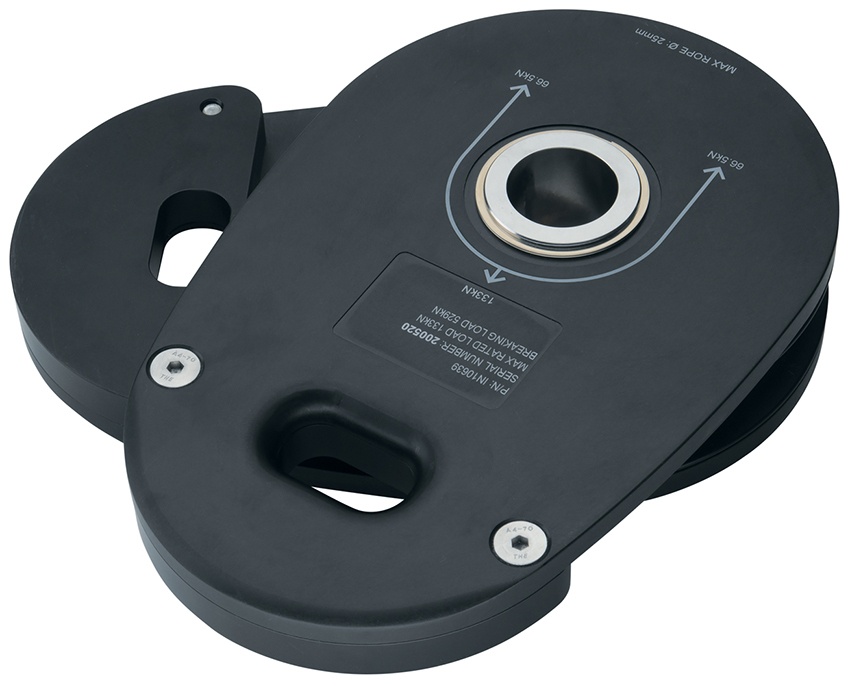

• Design: Side-opening plates allow the pulleys to be rigged easily. The soft attachment system eliminates heavy swivels and shackles.
• Fiber Rope: Snatch pulleys can be used with fiber rope up to 1 in (25 mm) in diameter. Smooth surfaces and chafe-free design minimize wear.
• Material: Sideplates are hardcoat-anodized, UV-stabilized 6061-T6 aluminum for maximum protection. The sheaves run smoothly and maintain efficiency at high loads using PTFE-coated ULC bearing technology.

Available Options:

• 24,000 lb Capacity IN10636
• 30,000 lb Capacity IN10639
• 50,000 lb Capacity IN11038

Specifications:

IN10636:

• Weight: 9 lbs (4 kg)
• Sheave Diameter: 6.5 in (165 mm)
• Max Rated Load: 24,000 lbs (106 kN)

IN10639:

• Weight: 20.5 lbs (9.3 kg)
• Sheave Diameter: 9 in (221 mm)
• Max Rated Load: 30,000 lbs (133 kN)

IN11038:

• Weight: 50 lbs (22.5 kg)
• Sheave Diameter: 11 in (279 mm)
• Max Rated Load: 50,000 lbs (222 kN)
