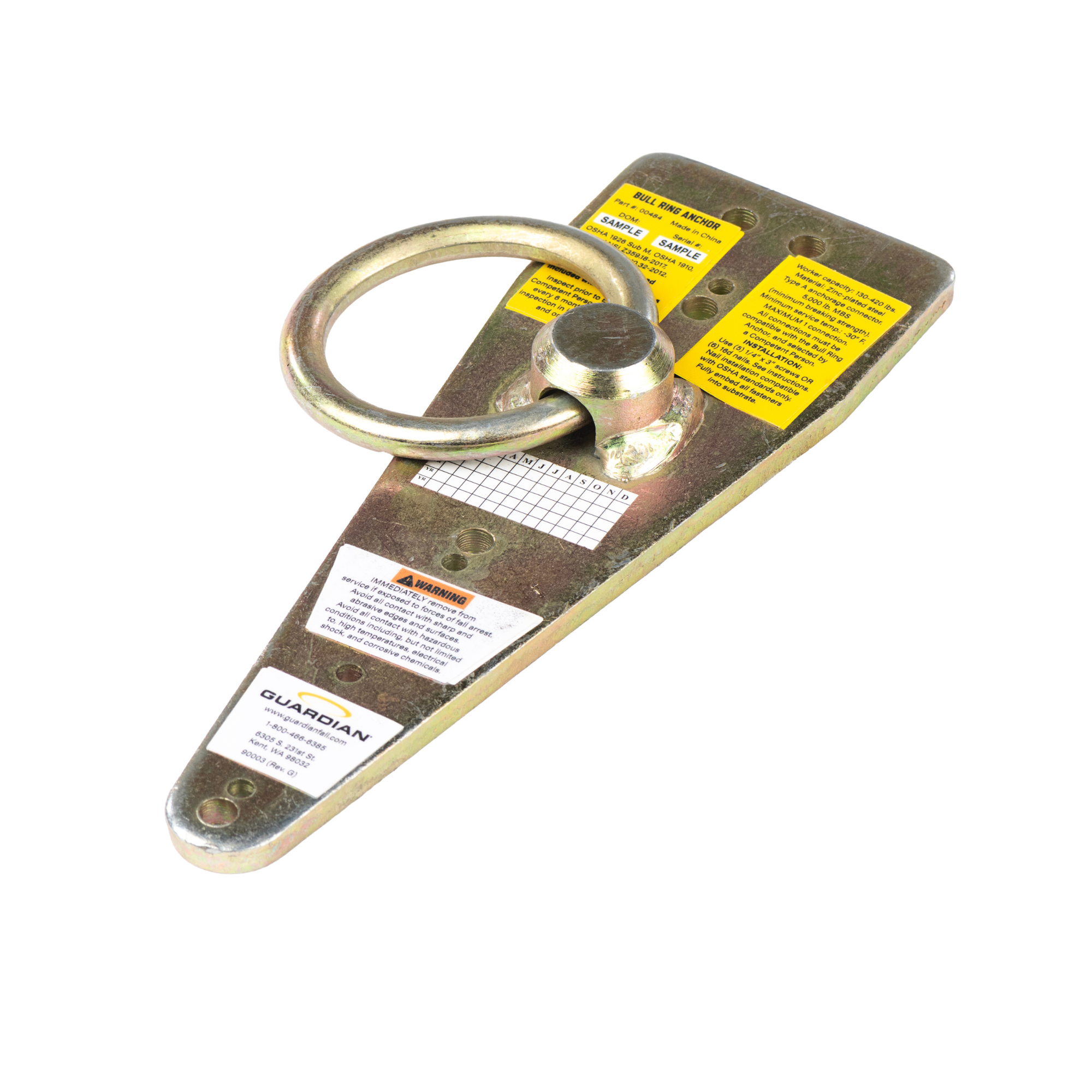

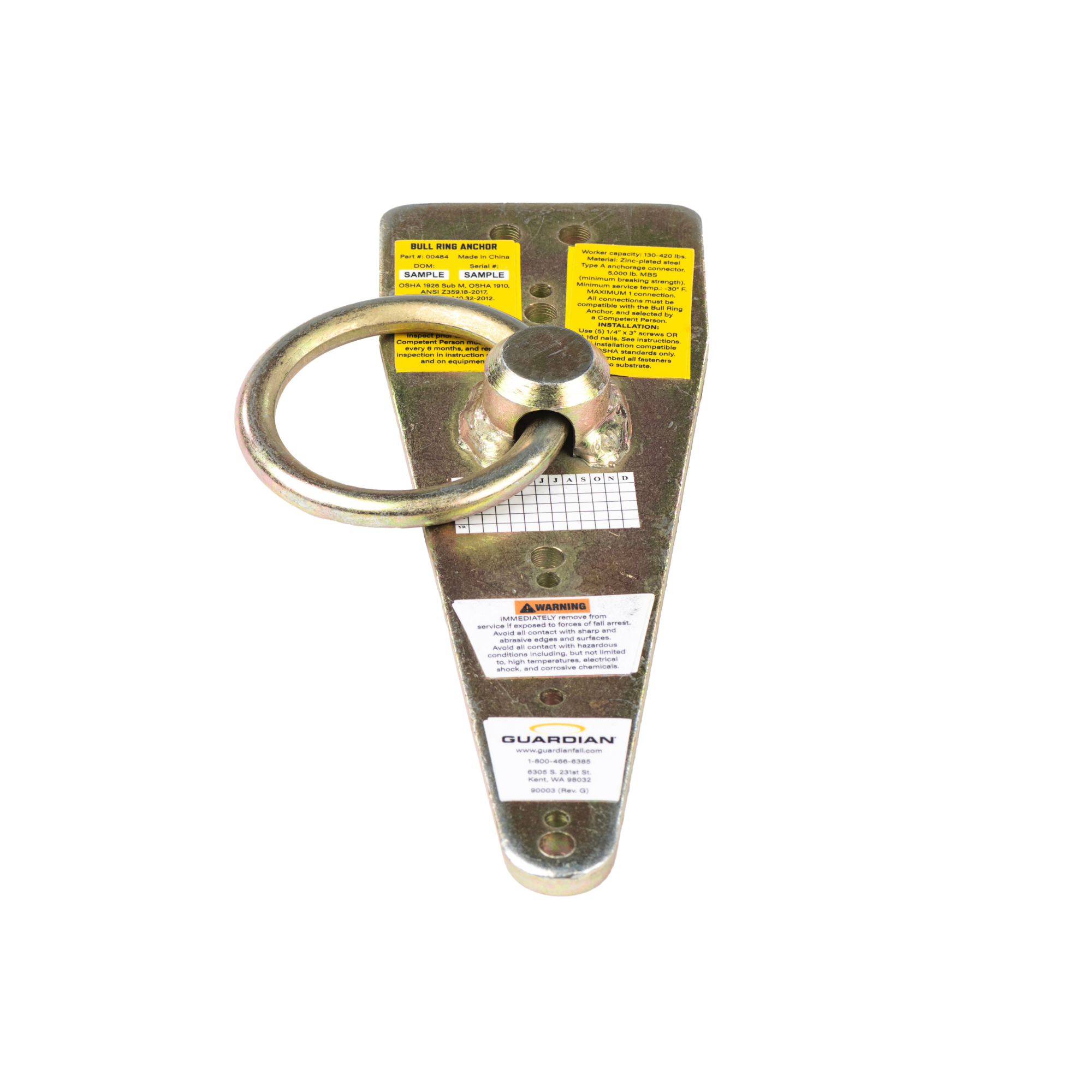

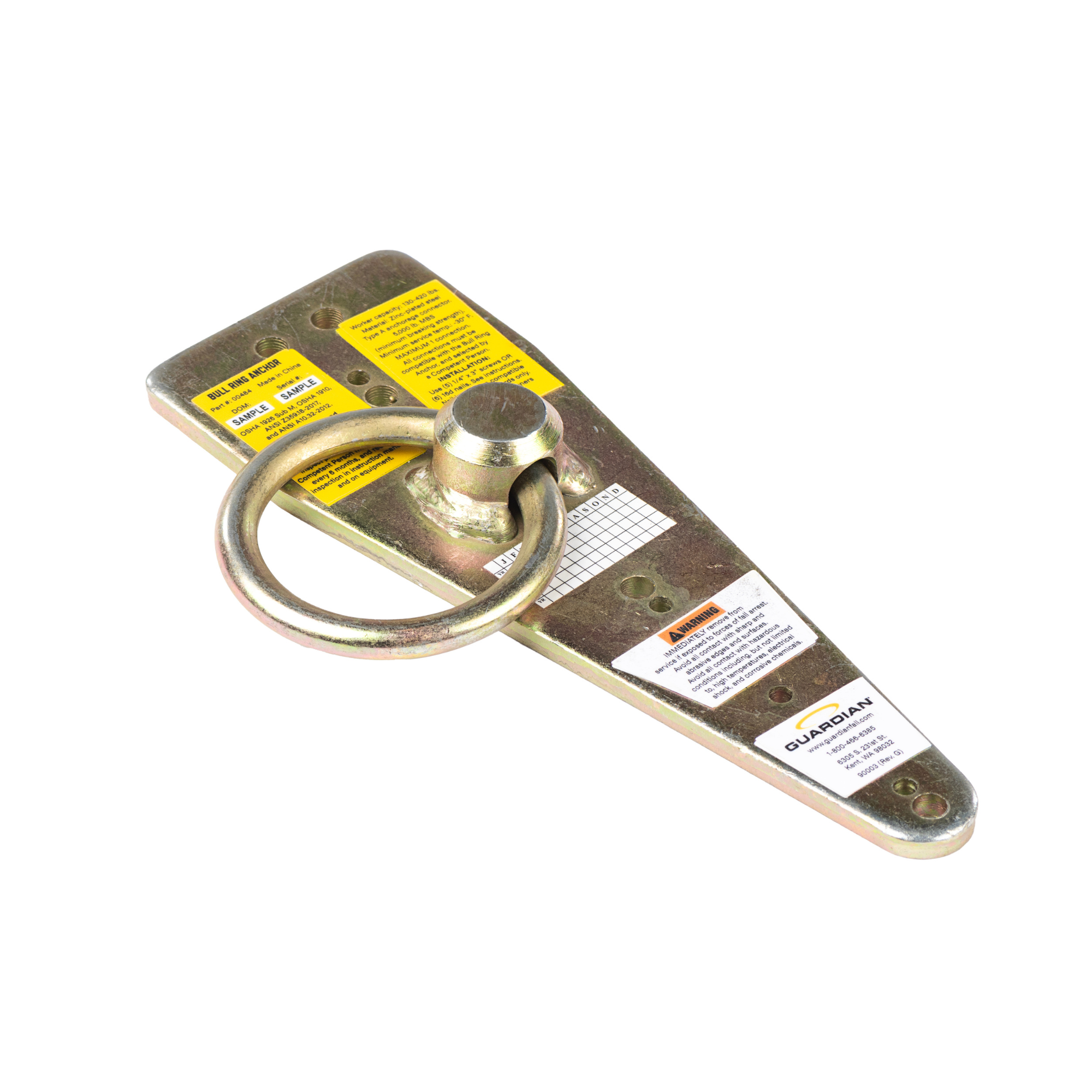

Guardian Bull Ring Anchor

Guardian Bull Ring Anchor

• Easy to install
• Reusable
• Lightweight and durable
• Compatible with horizontal lifelines

Specifications:

• Applicable Standards: OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.1-07, and ANSI A10.32-12
• Worker Capacity Range: 130-420 lbs
• Material: Galvanized Steel
• Min. Breaking Strength: 5,000 lbs

The Guardian Bull Ring Anchor is for personal fall arrest, restraint, or work positioning applications. The Substrate that the anchor is attached to must be a roof truss or a support beam that is minimum of 3" thick CDX or better. All fasteners (use either six 16d, 3" long 8 gauge nails or three 1/4" x 3" zinc-plated steel hex head lag screws) must be fully embedded in the substrate. Guardian's Bull Ring Anchor has a worker weight capacity range of 130-420 lbs.
