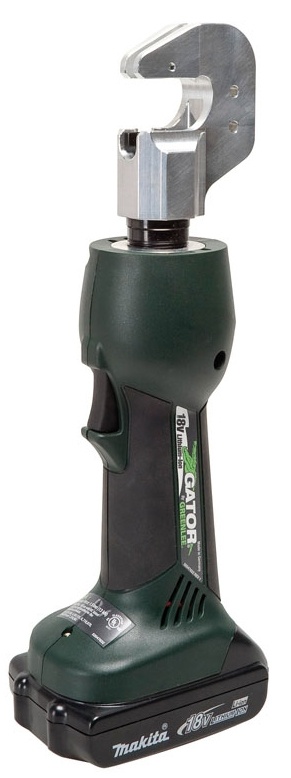

Greenlee Gator Terminal Crimping Tool

Greenlee Gator Terminal Crimping Tool

Greenlee's Gator Terminal Crimpling Tool includes a pressure sensor that monitors the force of each crimp with Intelligent Crimping System Technology. Battery powered, this lightweight crimper has one trigger tha controls all functions. The Gator Crimping Tool will automatically retract when crimping and cutting is complete.

Features:

• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
• LED light provides the operator with the battery charge and tool maintenance status
• In line tool style is light weight and very easy to control
• One trigger controls all tool functions
• Crimping head rotates 350°
• Tools automatically retract when the crimping or cutting cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee battery-powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Uses all Kwik Cycle 9 crimping dies
• Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger

Specifications:

• Battery : 18 V, 1.5 AMP-HR Lithium-Ion
• Battery Charge Time : 30 MINT
• Capacity : Kwik Cycle 9 Die Sets
• Crimp Cycle Time : 2 S
• Crimping Force : 2900.000 LB (13.000 KN)
• Estimated Cycles per Charge : 400
• Overall Length : 12-3/4 IN (324.000 MM)
• Replacement Part : 52177 UPC 52177 18 V 1.5 AMP-HR Li-ion Battery, 25752 UPC 25752 Carrying Case, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger
• Rotation : 350°
• Sub Brand : Gator
• Type : Terminal
• Weight : 3-1/2 LB (1.600 KG)
• Width : 2-7/8 IN (73.000 MM)
