French Creek Portable Davit System

French Creek Portable Davit System

Features:

• Base adjusts from 36″-60″ to fit in a wide range of openings
• Mast adjusts from 12″-30″ offset reach
• Integrated bullseye level and requires no tools

System Includes:

• (1) French Creek PD1 Mast Assembly
• (1) French Creek PD2 3-Piece Base
• (1) French Creek PD3 Mounting Bracket for R50G Rescue SRL
• (1) French Creek PD4 Mounting Bracket for MW50G Material Work Winch
• (1) French Creek R50G 3-Way Rescue SRL with Galvanized Steel Wire Rope
• (1) French Creek MW50G material Work-Winch with Galvanized Steel Wire Rope

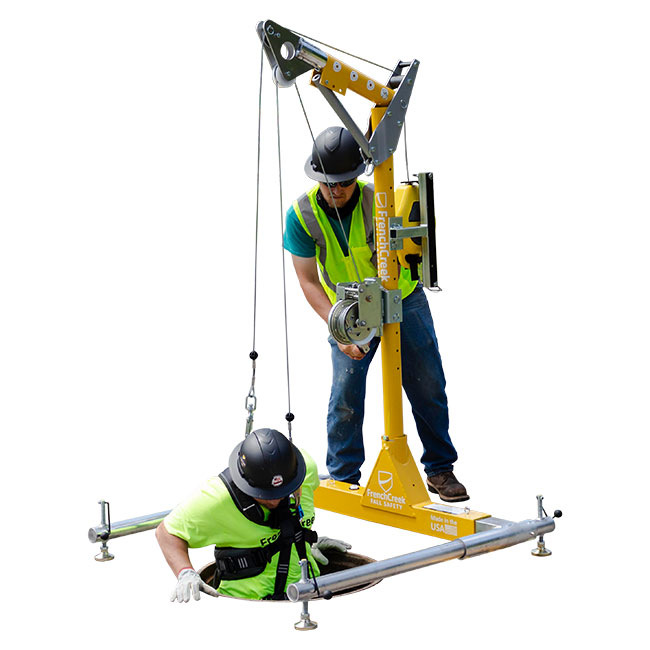

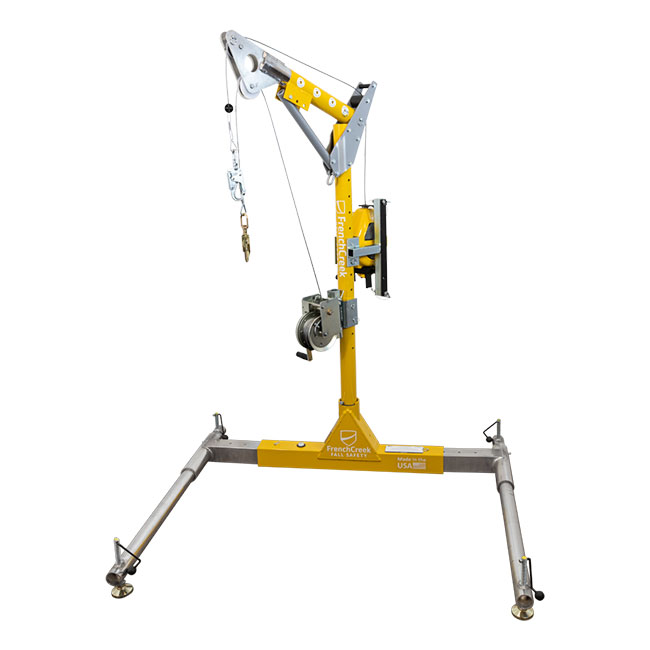

FrenchCreek's 6-piece portable davit system is designed for confined space entry and exit. The base is adjustable from 36" to 60" and features an offset davit mast. It is lightweight, powder-coated aluminum and stainless steel. It features both a material winch and a 3-way rescue SRL with 50 feet of galvanized steel wire rope.

Specifications:

• Boom: 13" - 30" Offset Reach
• Base: 36" - 60" adjustable base
• Weight Capacity: 130-310 lbs ANSI, 400 Lbs OSHA
• Capacity: 1 Entrant Only, 310 lb Max
