Dillon EDXtreme Communicator II

Dillon EDXtreme Communicator II

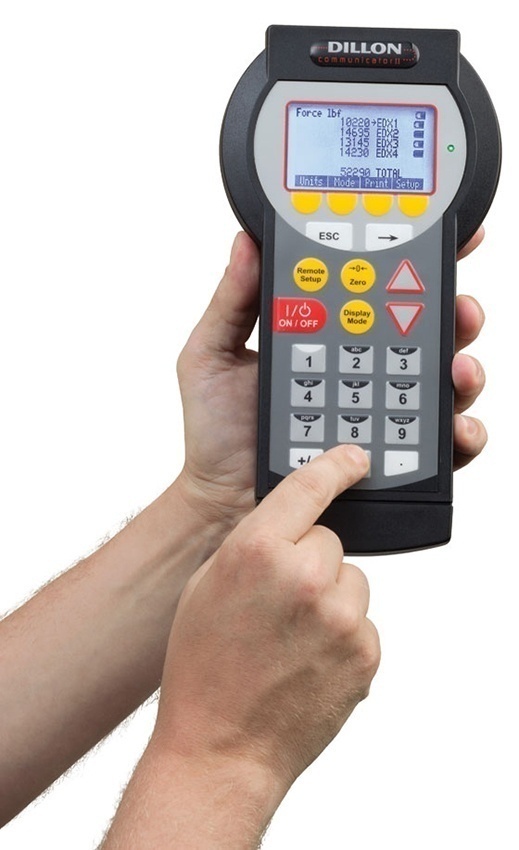

The Dillon EDXtreme Communicator II is a hand-held radio-ready controller for EDXtreme units. The Communicator II is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one or more Communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display readings at any or all lift points and calculate the total load.

Features:

• Remote configuration
• Data acquisition
• Single point monitoring of multiple links
• RS-232 interface for connection to a host PC
• Can use radio or be hard-wired
• Works with up to 15 units

Specifications:

• Enclosure: Designed to NEMA 3 / IP54 with optional sleeve. Suitable for protected outdoor use
• Size: 9.5 x 5.0 x 2.5 in. (241 x 127 x 64 mm).
• Display: 128 x 64 dot-graphic LCD display can show full readings of up to 5 instruments.
• Battery Life: Up to 80 hours of continuous radio using (4) AA alkaline batteries.
• Operating Temperature: -4° F to 158° F (-20° to 70° C)
• Connectors: Sealed connectors may be used for serial communications and wired connection to an EDXtreme dynamometer
• RS-232 Communication: Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
