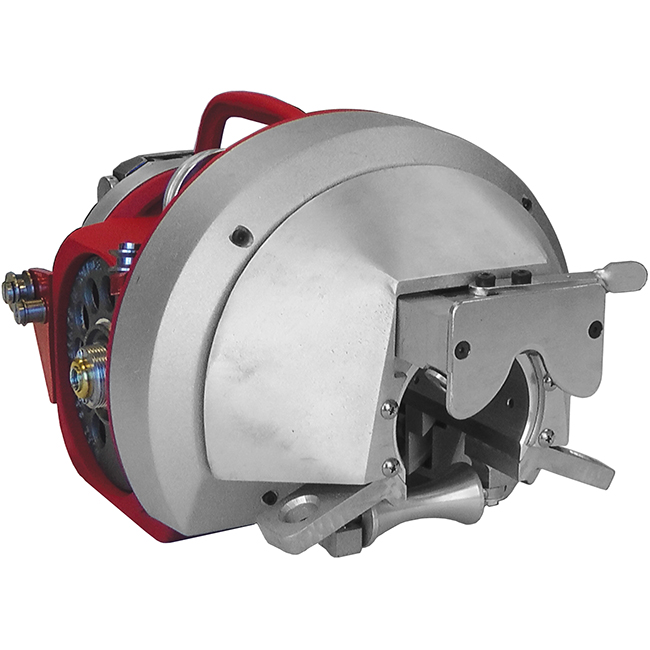

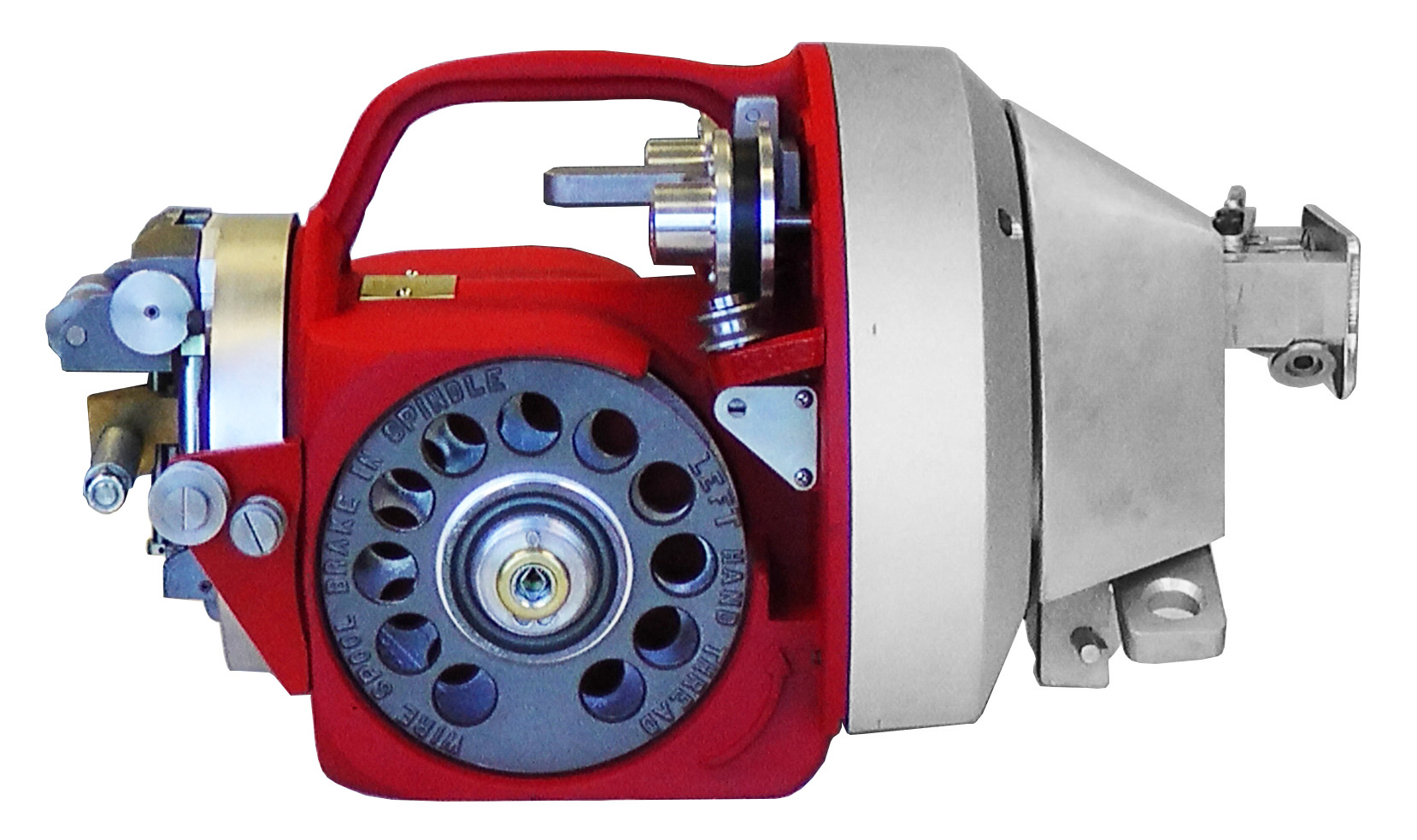

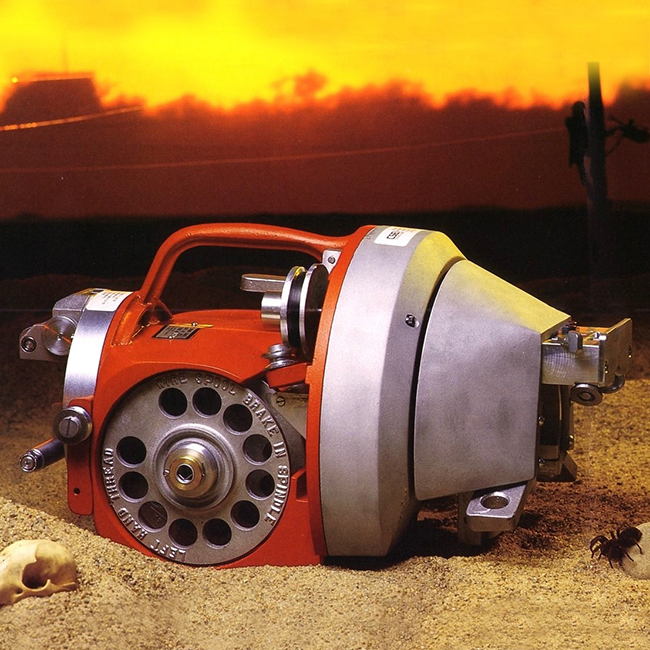

DCD Design Lineman Lasher

DCD Design Lineman Lasher

The Lineman Lasher is the pull type cable lasher for tough jobs, especially in dusty, wet or icy conditions. Use it to lash single or multiple cables up to 3” outside diameter and for single and double overlashing. You won’t get snagged in trees and tight places with the Lineman Lasher because of the smooth, tapered cowl. Transfer time around poles is cut by as much as one-third, with the wire quick release trigger mounts below the handle for easy, one-hand engage- ment and release for continuous lashing. Versatility means less downtime and smooth operation. A key feature is that the Lineman requires no strand traction to drive rotation – this means you can now lash in any weather. The tough, precision drive system needs no adjustment and delivers even lashing action. The strand brake keeps wire tight prevents the lasher from sliding backward when forward motion is halted. The Lineman Lasher holds up to 1200' per coil of 0.045” lashing wire without reloading, and works compatibly with up to 1/2” strands. A flat base ensures the lasher won’t roll around in transit, and the ergonomic handle and controls add to total precision performance.

Features:

• Strand brake keeps wire tight to prevent lasher from sliding back when forward motion is halted
• Smooth tapered cowl to prevent snags
• No strand traction needed to drive rotation means less downtime
• Holds up to 1200 feet per coil of .045” lashing wire without reloading
• Works compatibly with up to 1/2” Strands
• Flat base to prevent “roll around” in transit
• Tough, precision drive system needs no adjustment and delivers even lashing action

Specifications:

• Part Number:   61400-000
• Maximum Strand:   1/2”
• Maximum Lash:   3” Diameter
• Wire Size:   0.038” to 0.061”
• Spool Size:   1,200 Feet per Coil
• Overall Dimensions:   19-1/2” L x 12” W x 12” H
• Weight:   38.0 lbs
