Home > Crosby SHUR-LOC, S-1326 Swivel Hook 3/8"/10mm, 7,040 lb Working Load
Model#: 1004223
Stock#: CY-1004322
Crosby SHUR-LOC, S-1326 Swivel Hook 3/8"/10mm, 7,040 lb Working Load
CY-1004322
$442.00 Sale price: $442.00
THIS ITEM SHIPS FOR FREE!
ON BACKORDER
Call for availability

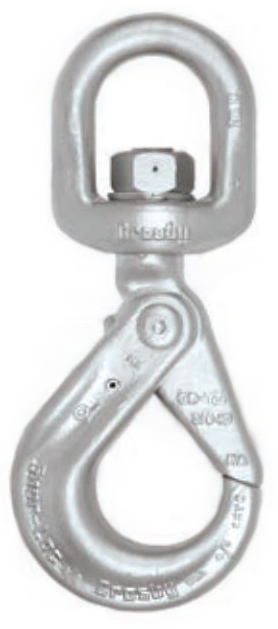

Crosby SHUR-LOC, S-1326 Swivel Hook
- Forged Alloy Steel - Quenched and Tempered.
- Individually Proof Tested at 2-1/2 times the 4:1 Working Load Limit with certification.
- Recessed trigger design is flush with the hook body, protecting the trigger from
- potential damage.
- Easy to operate with enlarged thumb access.
- Positive Lock Latch is Self-Locking when the hook is loaded.
- Rated for both Wire Rope and use with Grade 80/100 Chain.
- G-414 Heavy Thimble should be used with wire rope slings.
- Trigger Repair Kit available (S-4316). Consists of spring, roll pin and trigger.
- Fatigue rated.
- The SHUR-LOC hook, if properly installed and locked, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and1926.1501(g)(4)(iv)(B).
- "Look for the Platinum Color – Crosby Grade 100 Alloy Products."
CY-1004322
Width: | 4.39" |
Connector Type: | Swivel Hook |
Length: | 8.83" |
Manufacturer: | Crosby |
Material: | Forged Alloy Steel |
Material Compatability: |
Wire Rope Chain |
Rope Compatibility (Min/Max): | 3/8" |
Standards: |
OSHA 1926.1431 (g)(1)(i)(A) OSHA 1926.1501 (g)(4)(iv)(B) |
Thickness: | 0.94" |
Working Load Limit (WLL): | 7040 lbs |
