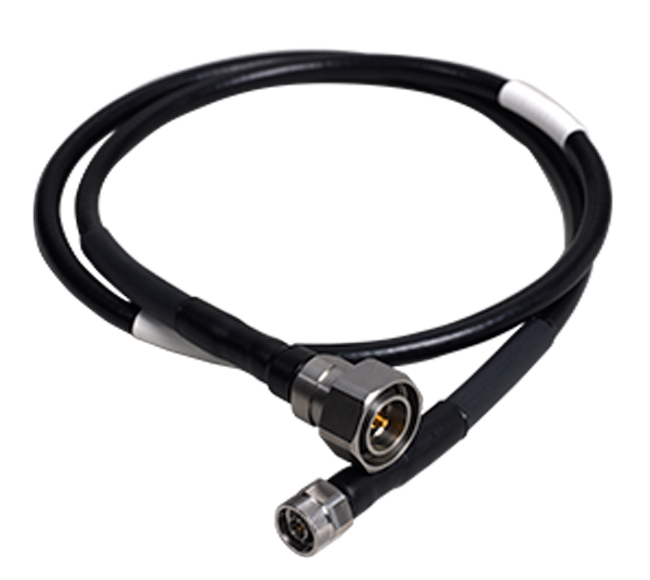

Anritsu Phase-Stable Test Port Extension Cables (1.5 M) (6 GHz, 50 O)

Features:

• Torque Resistant
• Crush Resistant: 500 pounds/linear inch
• Crush Resistant: 500 pounds/linear inch
• Tight Bend Radius (minimum 2.5 inch/6.4 cm)
• Wide Temperature Range
• Abrasion Resistant
• Chemically Inert and Resistant
• Lightweight Fiber Braided Jacket
• High Connector Pull Strength

Specifications:

• Connector A: Male
• Connector B: Female
• Multi-layer design:
  • Braided Jacket
  • Outer Binder
  • Braided Strength Member
  • Crush Member
  • Inner Jacket
  • Inner Braid
  • Electrical Shield
  • ePTFE Dielectric
  • Center Conductor

Anritsu Phase-Stable Test Port Extension Cables is a ruggedized stable test port cables combine excellent phase and amplitude stability with an environmental protection system for reliable, repeatable measurements over a long service life. This cable is designed for the field with the multilayer Anritsu’s ruggedized phase stable test port cables are ideal for line sweeping application. Exceptional durability while remaining lightweight and flexible, and they combine the electrical advantages of expanded PTFE dielectric with an integrated environmental protection system. The reinforced handgrip allows contractors and technicians to properly torque the system cable connector while preventing excess torque from being applied to the test cable. This cable is recommended for all line sweep applications.  The assemblies compliment the performance of your Anritsu test and measurement system by guaranteeing that performance will not degrade due to inferior cable assemblies.
