Anritsu MT1000A Network Master Pro OTDR Module Kit with Autofocus Video Inspection Probe

Anritsu MT1000A Network Master Pro OTDR Module Kit with Autofocus Video Inspection Probe

Kit Includes:

• MT1000A: Network Master Pro
• MT1000A-003: Connectivity for WLAN/Bluetooth
• MU100022A: OTDR Module 1310/1550/1625nm SMF
• MU100022A-002: Visual Fault Locator
• MU100022A-011: APC Polish
• MU100022A-022: High-Performance Dynamic Range
• MU100022A-026: SC Connector
• J1534A: LC-SC Plug-in Converter (for SM, SC(P)-LC(J))
• G0382A: Autofocus Video Inspection Probe
• H0388A: 1.25APC-M
• H0394A: LC-APC-F-L
• MT1000A-005: AUX I/O
• MT1000A-ES210: 2 Years Extended Warranty Service
• MU100022A-ES210: 2 Years Extended Warranty Service

This particular test set is designed to be your go-to OTDR test set. It includes what you need to arrive at the site, get your testing completed, and have the report submitted.

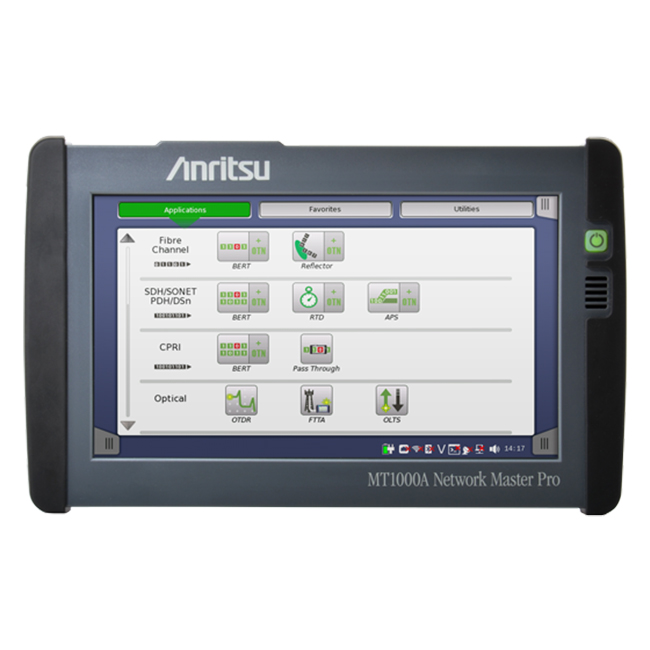

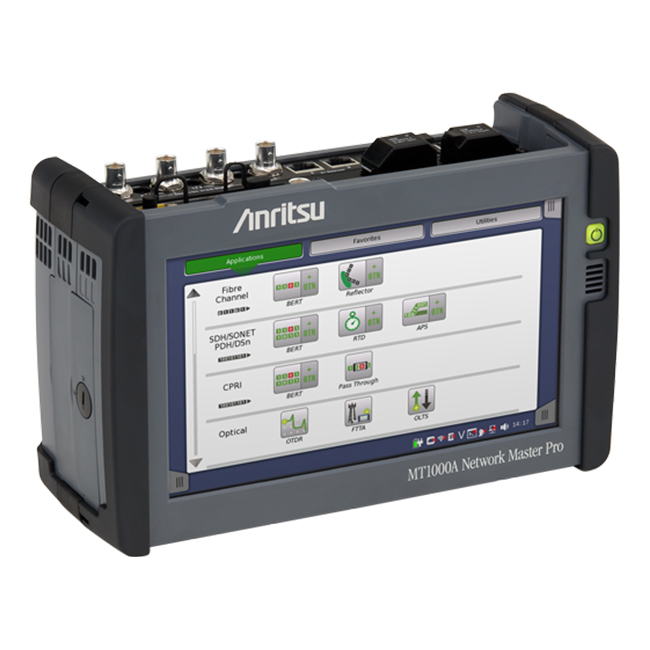

The MT1000 with the OTDR module is a compact, battery-powered and easy-to-use test set. The Anritsu MT1000A provides everything needed to install and maintain communication networks in a rugged, field portable package. This lightweight instrument simplifies the daunting task of collecting and interpreting data with an easy-to-use GUI and clear summaries allowing users of any skill level to operate the instrument to its full potential.

Features:

• Mobile Fronthaul and Backhaul - Optical Loss, Reflectance and ORL Measurements
  • Hybrid single mode fiber (1310 nm/1550 nm), multimode fiber (850 nm/1300 nm) models
  • 3 wavelength single mode fiber model (1310 nm/1550 nm/1625 nm, 1310 nm/1550 nm/1650 nm)
  • All-in-one OTDR, light source, optical power meter, visible light source (option)
  • Multi-pulse measurement for high-accuracy event detection
  • CPRI/OBSAI measurement with simultaneously installed Multi-rate Module MU100010A/MU100011A
  • Optical connector inspection with IEC 61300-3-35 Pass/Fail
• Easy-to-Use, Easy-to-Report
  • Graphical summary and Pass/Fail evaluation using Fiber Visualizer function
  • Intuitive touchscreen operation
  • One button, comprehensive PDF report generation
• Easily test long fibers 100 km or more
• Three single mode fiber (1310 nm/1550 nm) models: Standard, Enhanced, High-Performance
• 3 wavelength single mode fiber (1310nm/1550nm/1625nm) model: High-Performance
• Automated file naming/file saving and fast data acquisition reduce testing times
• Construction OTDR mode for cable installation: Automated testing of multiple fibers at multiple wavelengths
• Easily test PON Networks with up to 1×128 count splitters
• Multi-pulse measurement for high splitter loss measurement and high resolution testing
• Splitter identification by size with individual Pass/Fail

The MT1000A is a multi-function tester that can be configured with an array of transport testing functions and OTDR modules to ensure you have the tools you need today plus the expandability for future technologies – all of which are field upgradeable. This lightweight instrument simplifies the daunting task of collecting and interpreting data with an easy-to-use GUI and clear summaries allowing users of any skill level to operate the instrument to its full potential.

Specifications for OTDR Module MU100022A:

• Wavelength: 1310 nm/1550 nm/1625 nm ±25 nm
• Fiber Type: Single Mode Fiber (SMF), 10 µm/125 µm, ITU-T G.652
• Pulse Width: 3, 10, 20, 50, 100, 200, 500, 1000, 2000, 4000, 10000, 20000 ns
• Dynamic Range: 46 dB/46 dB/44 dB, 25 dB/25 dB/23 dB (Pulse Width: 100 ns)
• Deadzone (Fresnel) (IOR = 1.50000): ≤80 cm (typ.)
• Deadzone (Backscatter) (IOR = 1.50000): ≤3.8 m/4.3 m/4.8 m
