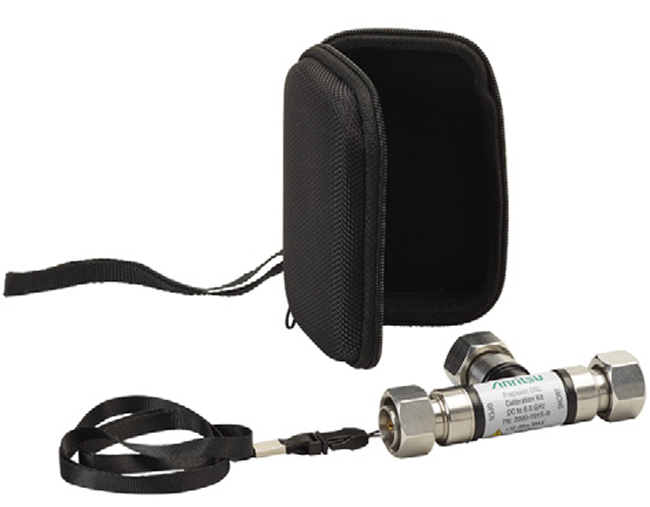

Anritsu Calibration Kit with Case, Type 4.3-10, DC to 6 GHz, Male

Name: Anritsu Calibration Kit with Case, Type 4.3-10, DC to 6 GHz, Male
SKU: ASU-2000-1915-R
Price: 2128.99 USD
Availability: InStock

$2,128.99 Sale price: $2,128.99 EA (1)

THIS ITEM SHIPS FOR FREE!

ON BACKORDER

Call for availability

Anritsu Calibration Kit with Case, Type 4.3-10, DC to 6 GHz, Male

Specifications:

OPEN	Specification
Length	24.23 mm
C0 (1E-15) F	10.0
C1 (1E-27) F/Hz	7.0
C2 (1E-36) F/Hz²	540.0
C3 (1E-45) F/Hz³	75.0
Phase (DC to 6 GHz)	≤ ± 2.0°

Short	Specification
Length	24.23 mm
L0 (1E-12) H	35.0
L1 (1E-24) H/Hz	7100.0
L2 (1E-33) H/Hz²	5800.0
L3 (1E-42) H/Hz³	740.0
Phase (DC to 6 GHz)	≤ ± 2.0°

Load	Specification
DC Resistance	50 Ω± 0.5 Ω
Return Loss (DC to 2.5 GHz)	≥ 40 dB
≥ 2.5 GHz to 6 GHz	≥ 38 dB
Max Power	1.0 W

The Anritsu 2000-1915-R Calibration Kit comes in a male connection and measures specifications from DC to 6 GHz. The calibration device is manufactured to Anritsu's extremely high standard which makes your life easier to confirm the job is done right. This high precision component when handled with proper care gives you the most accurate readings. With a wide operating temperature, this device is ready to test your work when you are.

ASU-2000-1915-R

Length:	Open: 24.23 mm Short: 24.23 mm
Manufacturer:	Anritsu
Type:	4.3-10 \| Male
Weight:	2.00
