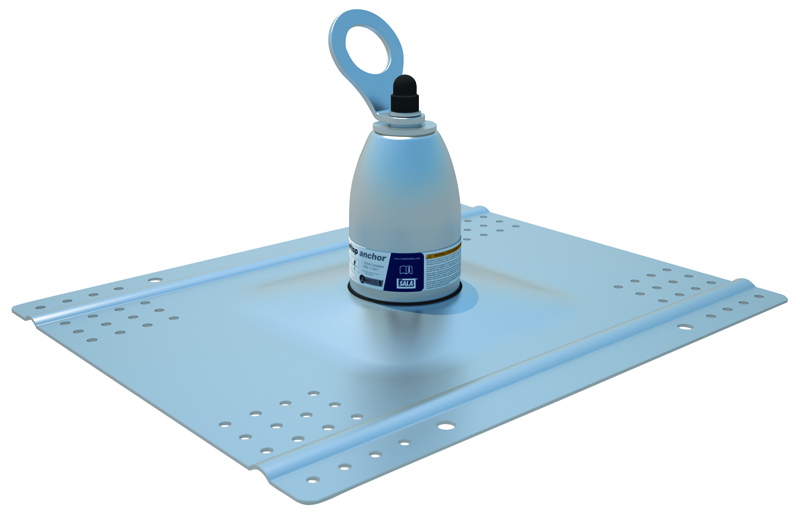

DBI Sala 2100133 Roof Top Anchor

The DBI Sala 2100133 Roof Top Anchor is a universal roof top anchor for metal, concrete, and wooden roofs.  This roof top anchor replaces previous model # 2100075. Built from top quality materials, this anchor has impeccable strength and durability that can endure any working environment. Roof anchors are often overlooked for fall protection, but this quick and easy to install anchor can ensure proper fall protection for anchorage.

• Installs to 24 gauge or thicker metal, 5/8" (1.6cm) wood and 3,000 PSI (21 MPa) concrete roofs
• Accommodates roof ribs 10-20 in. (25.4-50.1cm) apart in 1 in. (2.5cm) increments
• For use on flat or sloped (up to 3:12 pitch) roof decks
• Multiple fastener options available
• Extremely fast and efficient installation
• Unique load distributing design protects roof and user
• Swiveling tie-off point for complete mobility
• Corrosion resistant construction and coating
• Compatible with various fall arrest connecting systems
• Multi-person use with horizontal lifeline system

Features:

• Installs to 24 gauge or thicker metal, 5/8" (1.6cm) wood and 3,000 PSI (21 MPa) concrete roofs - Versatile system provides a fall protection solution for building owners and roof maintenance contractors.
• Accommodates roof ribs 10-20 in. (25.4-50.1cm) apart in 1 in. (2.5cm) increments - Universal base includes a variety of holes to accommodate various roof rib spacing for ultimate versatility.
• For use on flat or sloped (up to 3:12 pitch) roof decks - Ideal for flat roofs, but also can be installed to 3:12 maximum slope roofs for flexibility.
• Multiple fastener options available - Universal base with a variety of mounting holes and sizes can be used with lag screws, Fablok fasteners, Teks screws, rivets, and various chemical and mechanical concrete fasteners.
• Extremely fast and efficient installation - Unique design allows anchor to be directly fastened to the roof panels, not a structural member, for fast and simple installation.
• Unique load distributing design protects roof and user - During a fall, the post on the anchor tips over distributing the forces providing added safety to the user and roof structure.
• Swiveling tie-off point for complete mobility - D-ring rotates 360 degrees for maximum mobility and protection.
• Corrosion resistant construction and coating - Heavy duty coated steel construction provides maximum corrosion resistance and added longevity.
• Compatible with various fall arrest connecting systems - Ideal for use with a shock absorbing lanyard, self retracting lifeline or rope grab system for added versatility.
• Multi-person use with horizontal lifeline system - A Sayfline™ or EZ-Line™ horizontal lifeline system installed between two anchors will provide a safe tie-off point for two workers.

Specifications:

• Attachment Type Info: Rivet/Fablok/Teks Screw
• Install Type: Permanent
• Capacity: 310 lbs. (141 kg)
• Brand: DBI-SALA®
• iSafe Equipped: No
• Label: Vinyl
• Roof Installation: CDX Plywood 5/8" (1.6cm) Minimum
• Roof Installation: Concrete
• Roof Installation: Steel Decking 24 Gauge Minimum
• Model: 2100133
• Physical Dimensions: 21.70x17.70x10.00 (in)
• Product Styles: Fixed
• Product Types: Anchors for Roofs
• Standards: OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req.
